XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

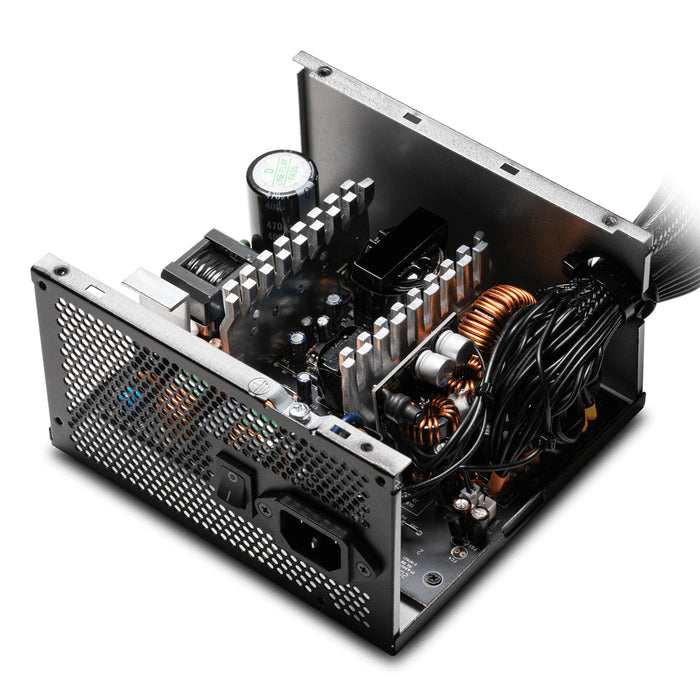

DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.
80 Plus Bronze Certification
XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.
Cybenetics ETA and LAMBDA Certified
XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
120mm Fluid Dynamic Bearing (FDB) Fan
The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Main Japanese Capacitor at 105°C
High quality 105°C Main Japanese Capacity in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.
8 Industrial-Level Protections
XPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.
Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
Feature: ATX Power connector (24-pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Silver
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2000 RPM
Feature: On/off switch

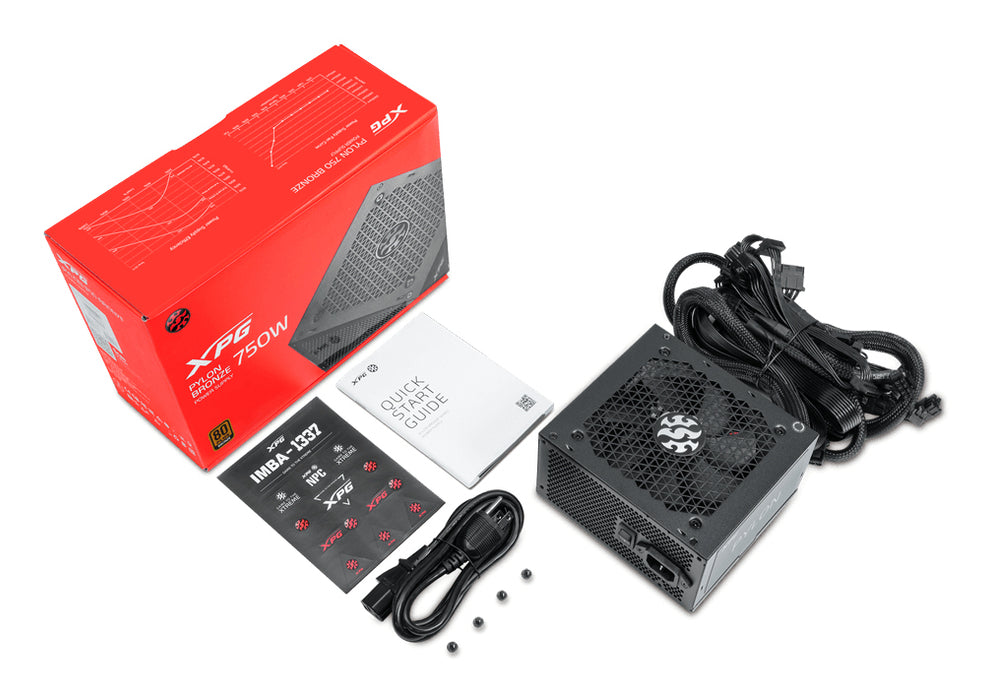

Packaging content
Cables included: AC
Certificates
Compliance certificates: RoHS
Certification: CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.12 kg
Packaging data
Package weight: 2.63 kg
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
Logistics data
Harmonized System (HS) code: 84733020
XPG PYLON 750W Power Supply. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
