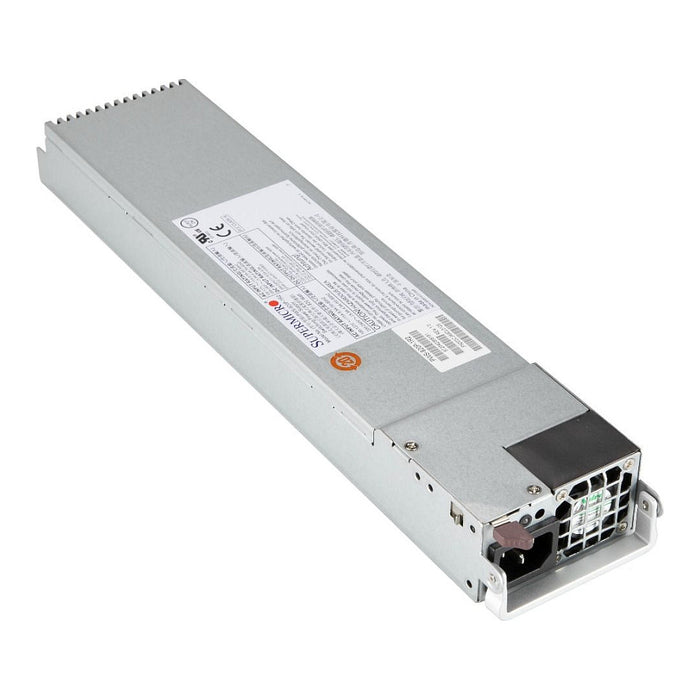

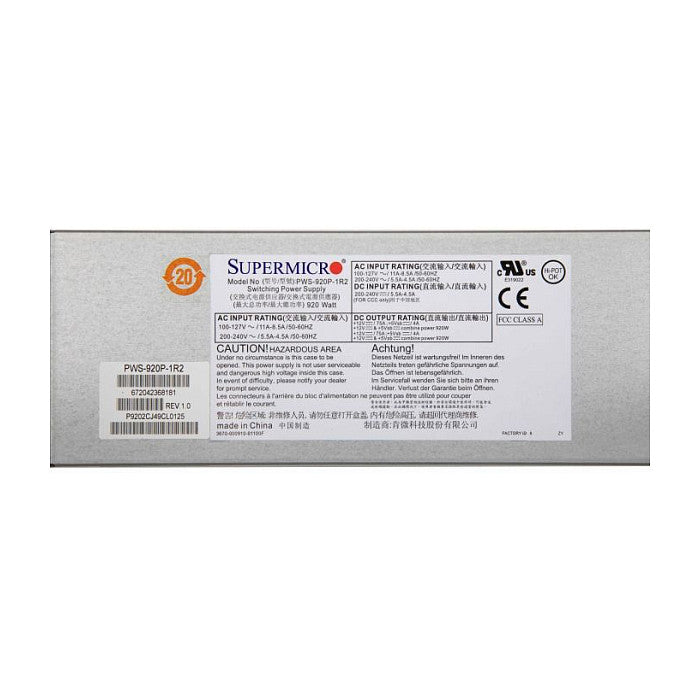

The Supermicro PWS-920P-1R2 is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Power
Total power: 920 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (@110V): 11 A
Maximum input current (@220V): 5.5 A
Power Factor Correction (PFC) type: Active
Max output current (+12V): 75 A
Max output current (+5V): 4 A
Efficiency: 94%
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: Server
Power supply unit (PSU) form factor: 1U
Certificates
Compliance certificates: REACH, RoHS
Weight & dimensions
Width: 79 mm
Depth: 40 mm
Height: 336 mm
Technical details
Feature: Sustainability compliance
Logistics data
Harmonized System (HS) code: 84733020
Supermicro PWS-920P-1R2. Total power: 920 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Purpose: Server, Power supply unit (PSU) form factor: 1U, 80 PLUS certification: 80 PLUS Platinum. Compliance certificates: REACH, RoHS. Width: 79 mm, Depth: 40 mm, Height: 336 mm
Super Micro
MBR CODE - PWS-920P-1R2
EAN - 8015747190916
