The P300 is Patriot’s next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.
Features
NVMe version: 1.3
SSD capacity: 1.02 TB
SSD form factor: M.2
Interface: PCI Express 3.0
Feature: NVMe
Memory type: 3D NAND
Component for: PC/Laptop
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 2100 MB/s
Write speed: 1650 MB/s
Random read (4KB): 290000 IOPS
Random write (4KB): 260000 IOPS
Sequential read speed (ATTO): 2100 MB/s
Sequential write speed (ATTO): 1650 MB/s
Sequential read speed (CDM): 2100 MB/s
Sequential write speed (CDM): 1650 MB/s
Sequential read speed (AS SSD): 2100 MB/s
Sequential write speed (AS SSD): 1650 MB/s
M.2 key ID: B+M
PCI Express interface data lanes: x4
Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: ECC
Mean time between failures (MTBF): 1500000 h
TBW rating: 480
Power
Power consumption (idle): 0.37 W
Weight & dimensions
Width: 22 mm
Depth: 80 mm
Height: 3.8 mm
Weight: 9 g
Packaging data
Cables included: No
Manual languages: English
Package width: 100 mm
Package depth: 6.6 mm
Package height: 132 mm
Package weight: 20 g
Package type: Blister
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Other features
Warranty period: 5 year(s)
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
Harmonized System (HS) code: 84717070

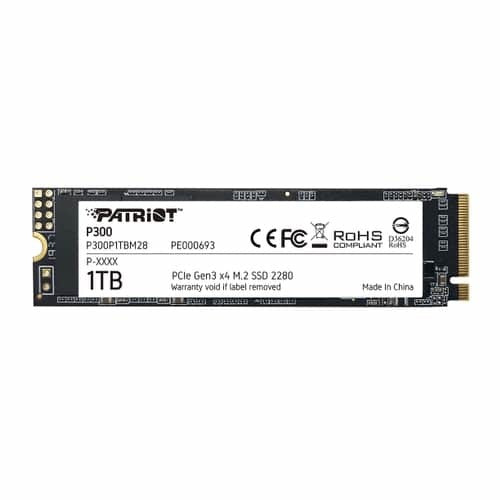

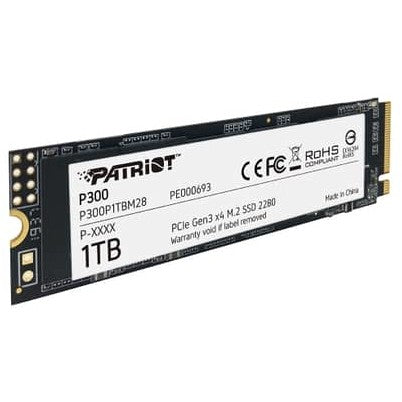

Patriot Memory P300. SSD capacity: 1.02 TB, SSD form factor: M.2, Read speed: 2100 MB/s, Write speed: 1650 MB/s, Component for: PC/Laptop
Patriot
MBR CODE - P300P1TBM28
EAN - 0814914026533
