Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: Intel LGA1851
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,6400,8800 MHz
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 256 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 7
Number of storage drives supported: 4
Feature: RAID support
RAID levels: 0, 1, 5, 10
Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4

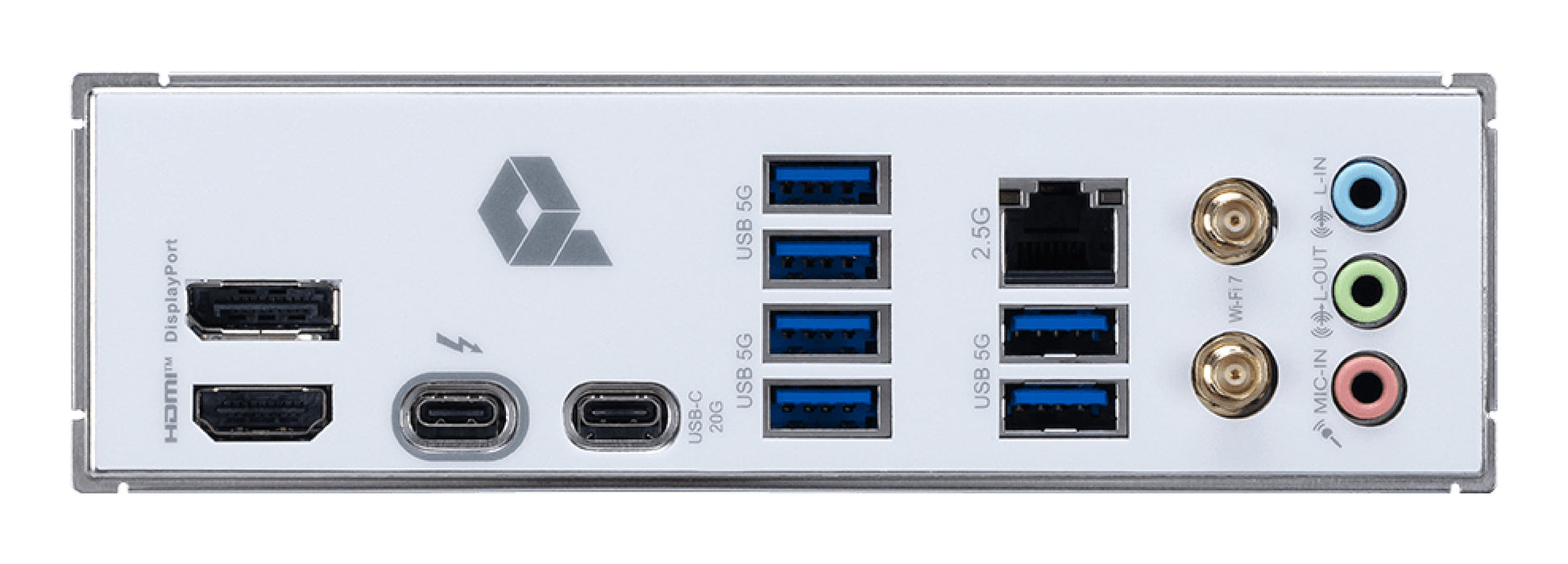

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Thunderbolt ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: Intel Z890
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Silver, White
PC health monitoring: Fan, Temperature, Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 slots: 4
Number of M.2 (M) slots: 3
Processor special features
Feature: Intel Extreme Memory Profile (XMP)
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm

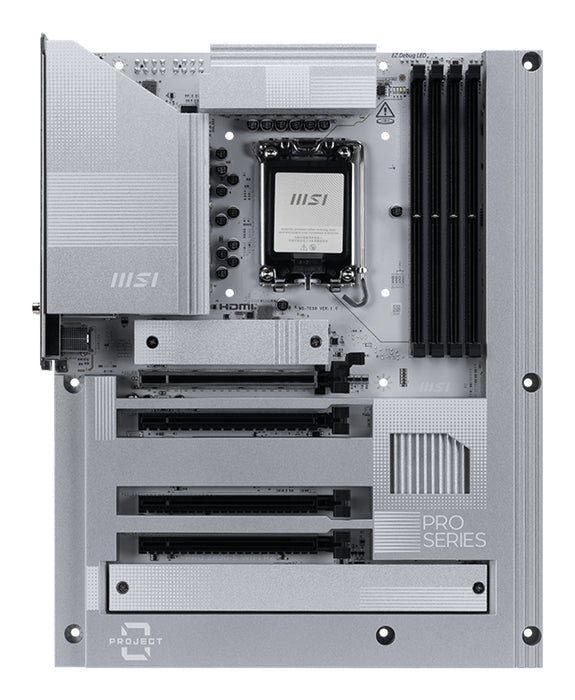

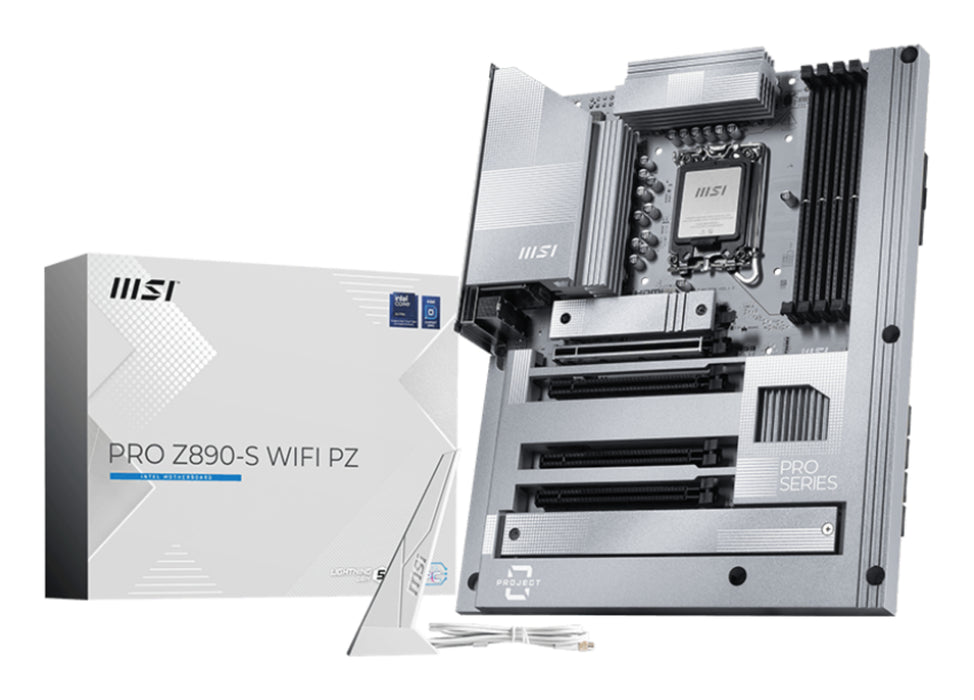

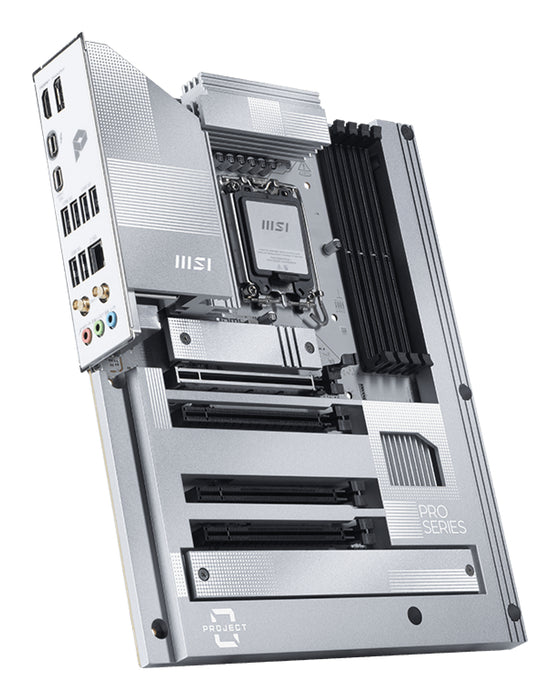

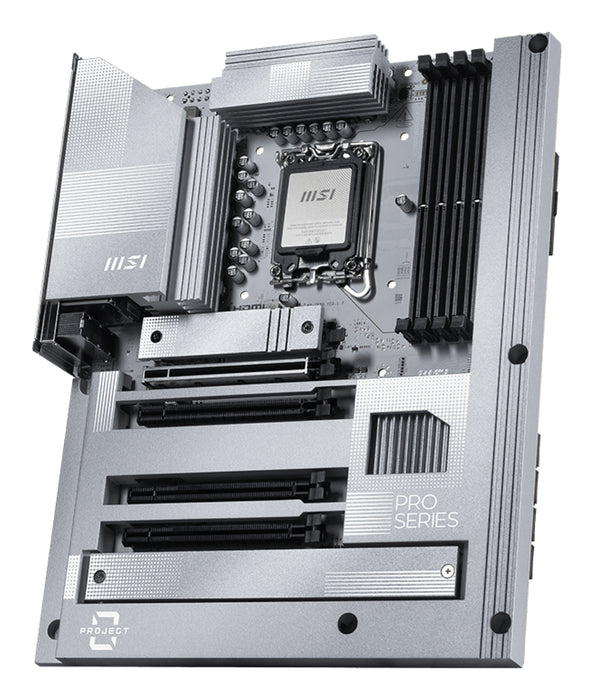

MSI PRO Z890-S WIFI PZ. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
MSI
MBR CODE - 7E58-001R
EAN - 4711377288996
Processor manufacturer | Intel |
Processor socket | LGA 1851 (Socket V1) |
Compatible processor series | Intel Core Ultra (Series 2) |
Supported processor sockets | Intel LGA1851 |
Maximum internal memory supported by processor | 256 GB |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
ECC сompatibility | Non-ECC |
Supported memory clock speeds | 4800,6400,8800 MHz |
Supported memory clock speed (max) | 8800 MHz |
Maximum internal memory | 256 GB |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of HDDs supported | 7 |
Number of storage drives supported | 4 |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
On-board graphics card | No |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
Total number of SATA connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Thunderbolt ports quantity | 1 |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Bluetooth | Yes |
Bluetooth version | 5.4 |
Motherboard chipset | Intel Z890 |
Audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Product colour | Silver, White |
PC health monitoring | Fan, Temperature, Voltage |
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Windows operating systems supported | Windows 11 x64 |
PCI Express x16 slots | 4 |
Number of M.2 (M) slots | 3 |
Intel Extreme Memory Profile (XMP) | Yes |
Width | 243.8 mm |
Depth | 304.8 mm |
