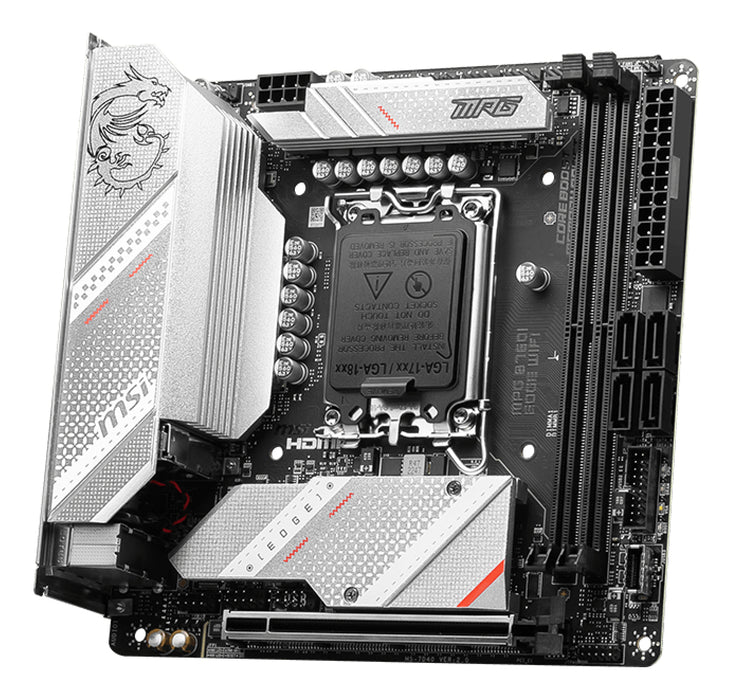

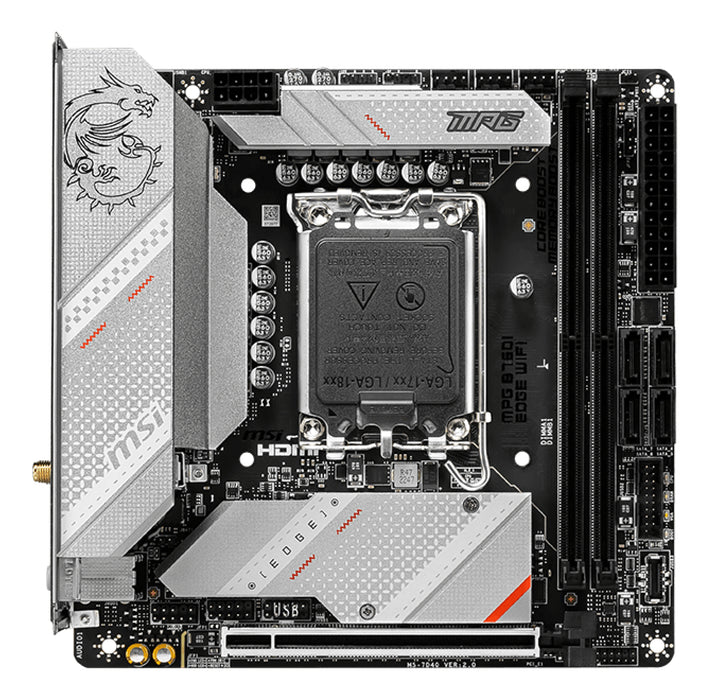

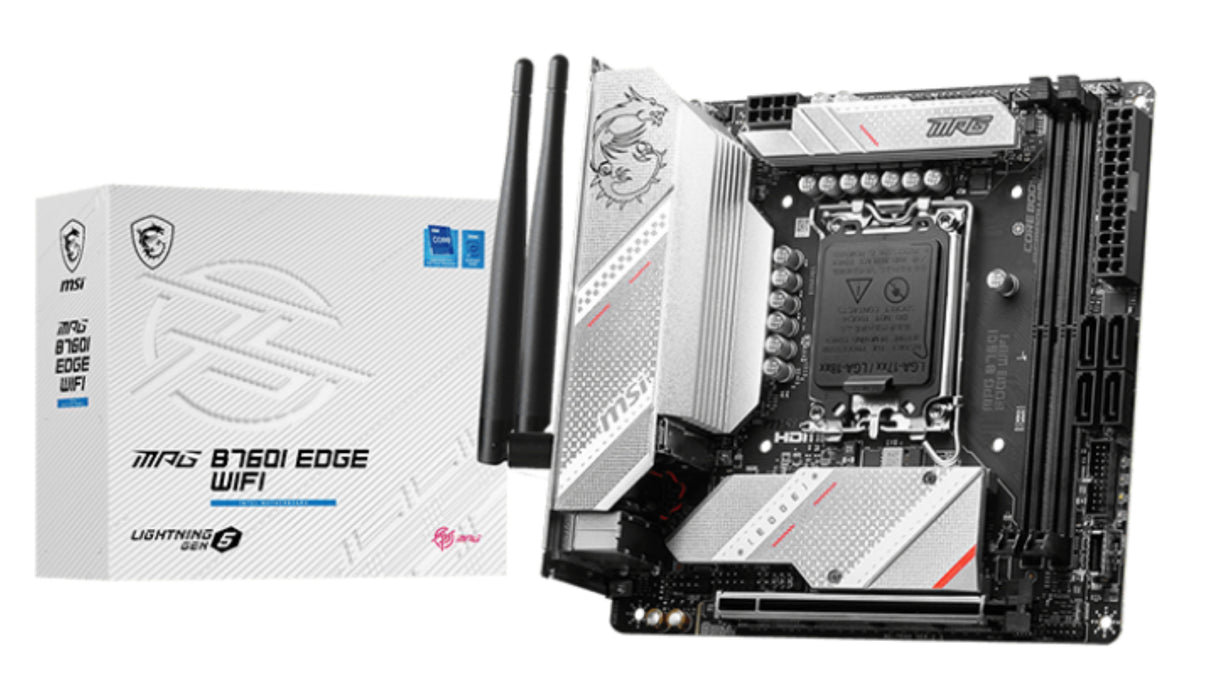

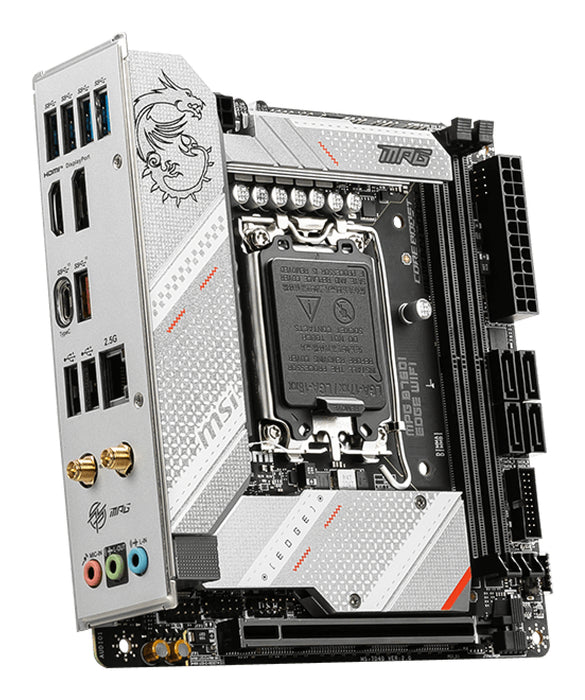

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
8-Layer Server Grade PCB
8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400,5200, 5000, 4800 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 96 GB
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: TPM connector
Feature: RGB LED pin header

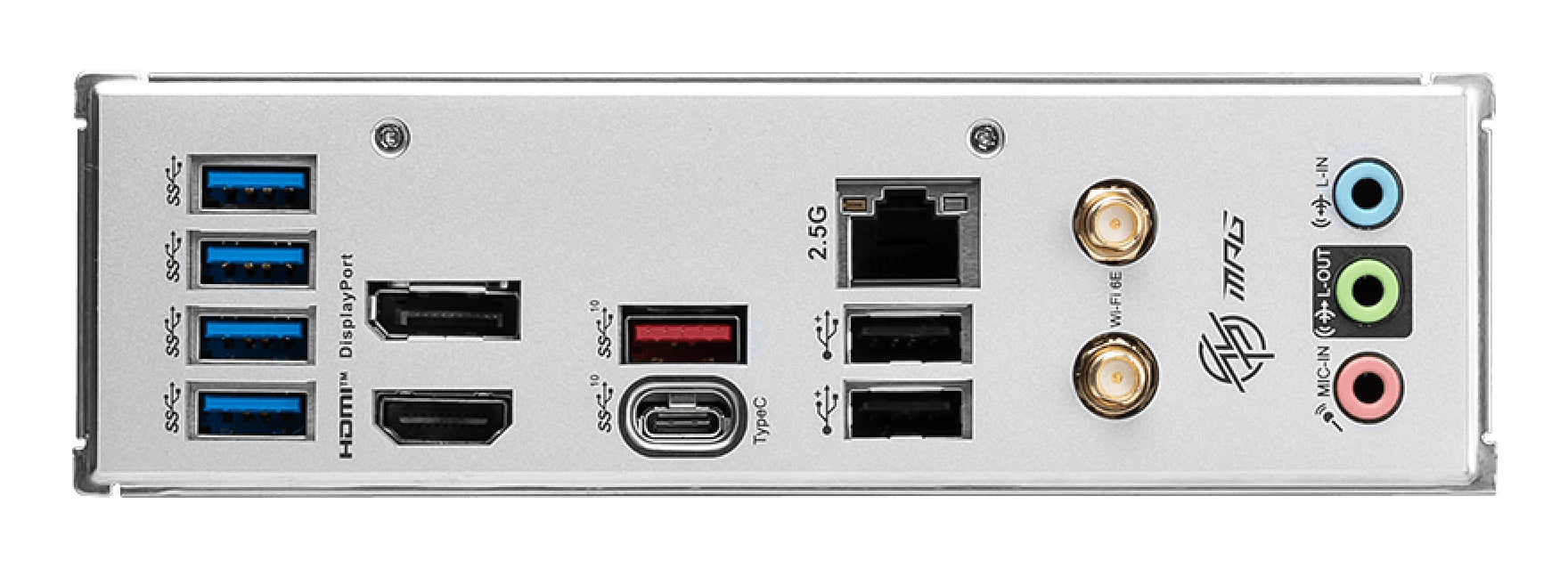

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black, Silver
Component for: PC
Motherboard form factor: mini ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 3.5
Weight & dimensions
Width: 170 mm
Depth: 170 mm
MSI MPG B760I EDGE WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: Intel
MSI
MBR CODE - 7D40-005R
EAN - 4711377069632
