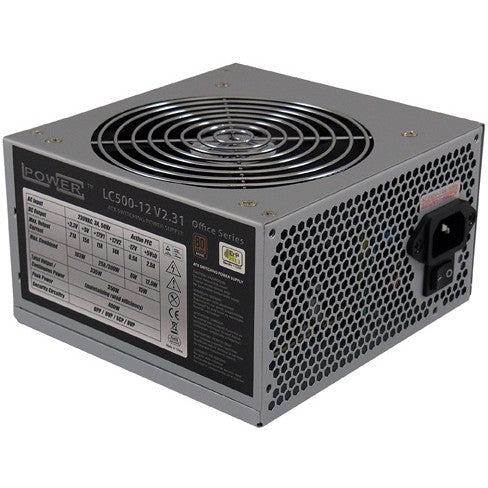

The OFFICE SERIES by LC-POWER offers a good price-performance ratio:
thanks to its 120mm fan, the LC500-12 V2.31 lets you experience a stress-free and silent work in your office as well as at home. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,21W) and
increases the efficiency of the power supply up to 88,63%!
Power
Total power: 350 W
Peak power: 400 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 3 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 103 W
Combined power (+12V): 300 W
Combined power (+5V): 103 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 21 A
Max output current (+12V1): 11 A
Max output current (+12V2): 14 A
Max output current (+5V): 15 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 88.63%
Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Number of PATA power connectors: 2
Feature: EPS power connector (8-pin)
PCI Express power connectors (6-pin): 1
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Design
Product colour: Grey
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Certificates
Certification: TÜV, CE
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 85 mm
Weight: 1.38 kg
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
LC-Power LC500-12 V2.31. Total power: 350 W, AC input voltage: 230 V, Peak power: 400 W. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: TÜV, CE
LC-Power
MBR CODE - LC500-12 V2.31
EAN - 4260070124402
