Power
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 18.6 W
Combined power (+5Vsb): 18.6 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces

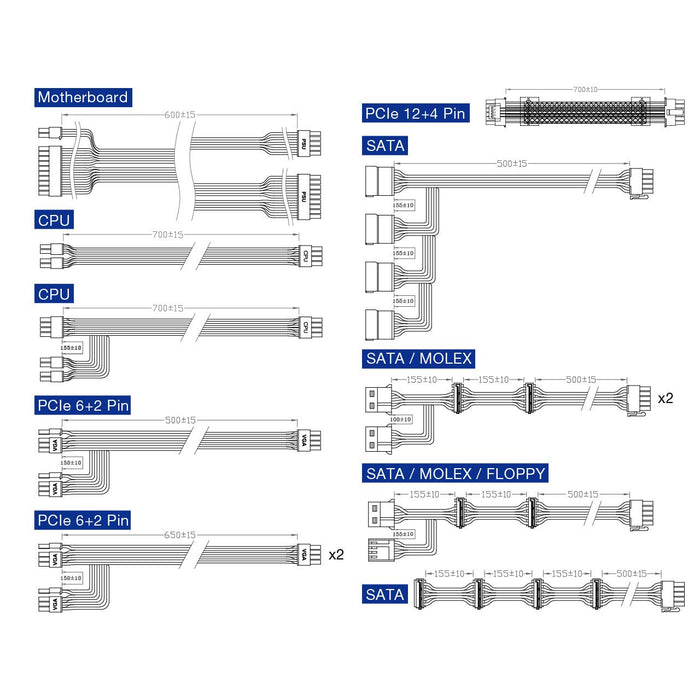

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 14
Peripheral (Molex) power connectors (4-pin): 5
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 700 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Floppy drive power connector: 1
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
EPS version: 2.92
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 190 mm
Depth: 86 mm
Height: 150 mm

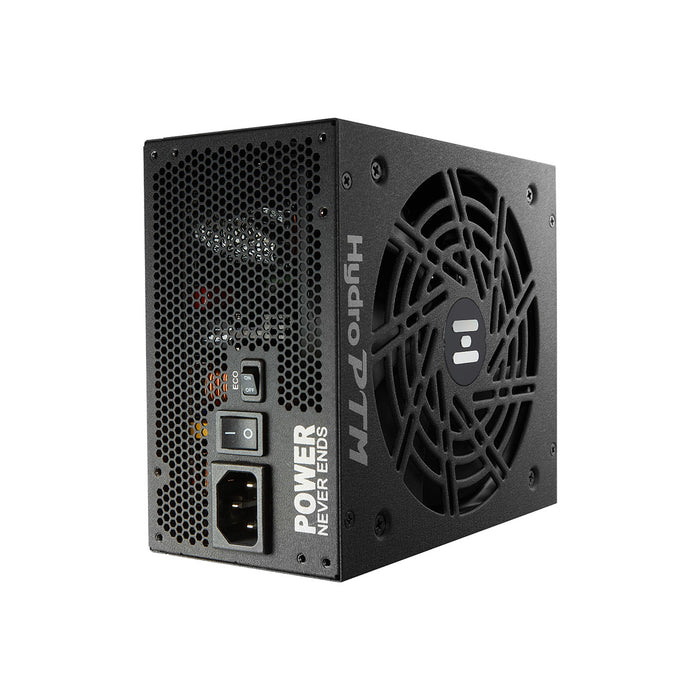

FSP Hydro PTM PRO ATX3.0(PCIe5.0) 1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 86 mm, Height: 150 mm
FSP
MBR CODE - PPA12A1014
EAN - 4713224527395
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 14 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 190 mm |
| Depth | 86 mm |
| Height | 150 mm |
