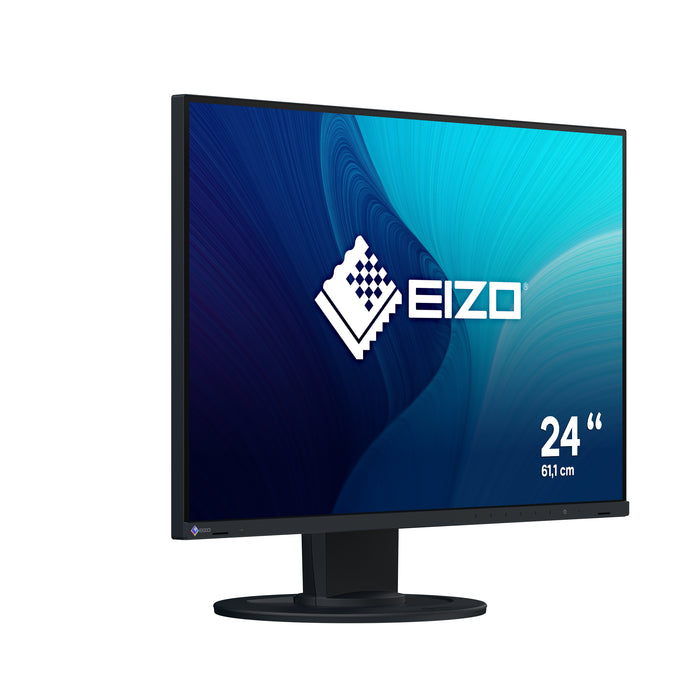

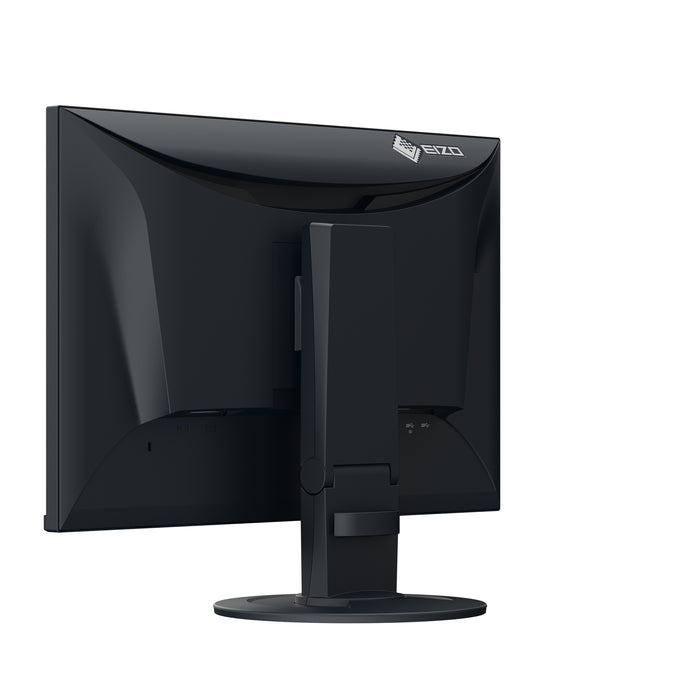

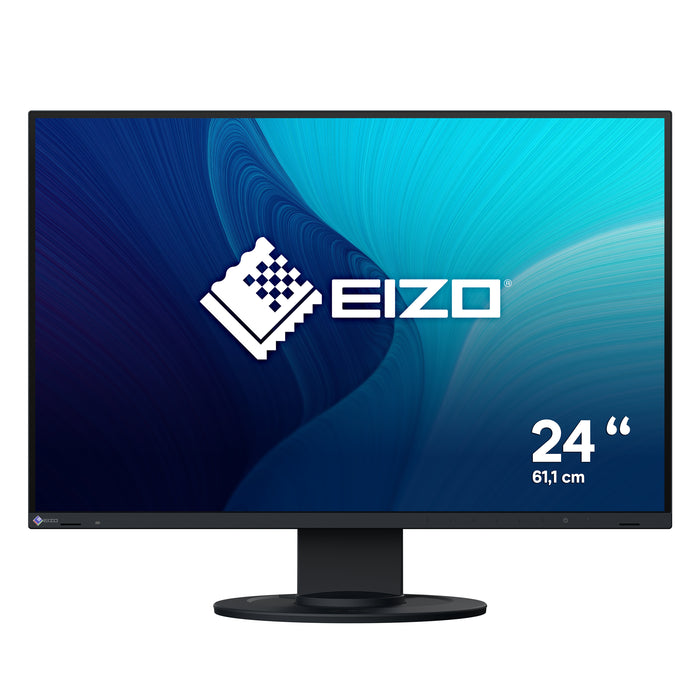

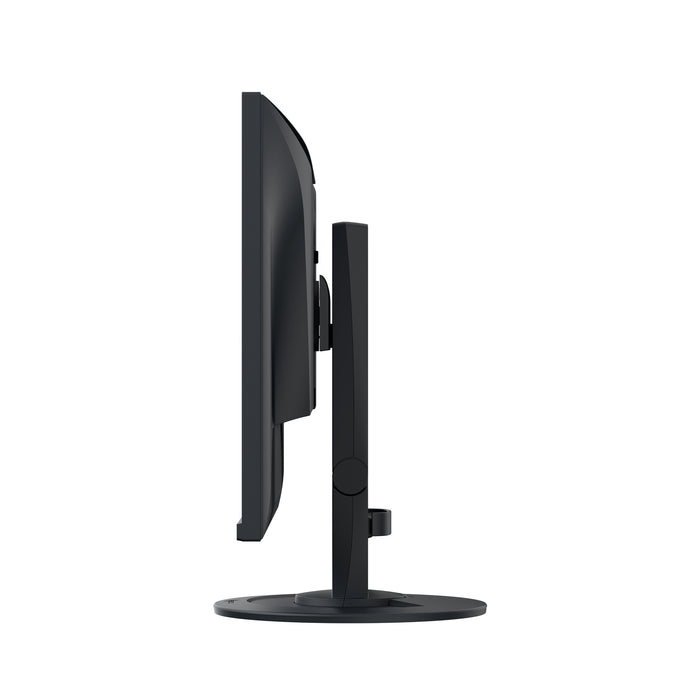

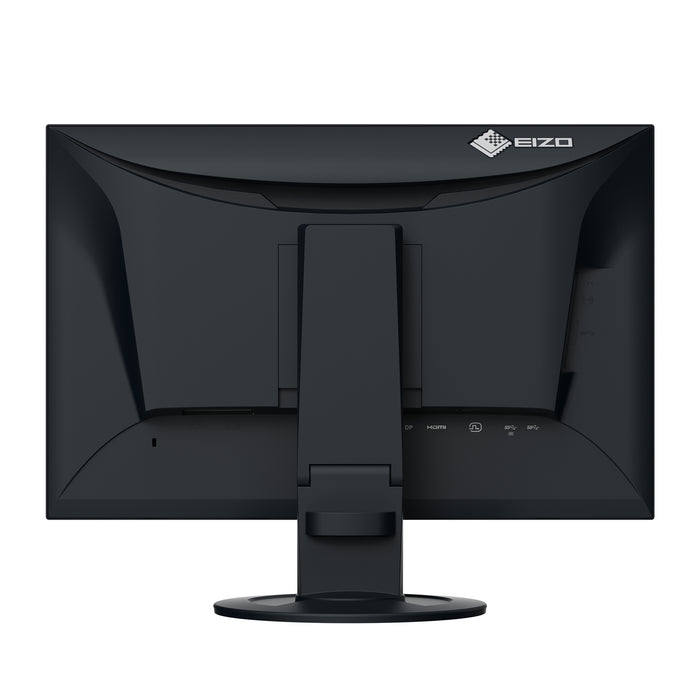

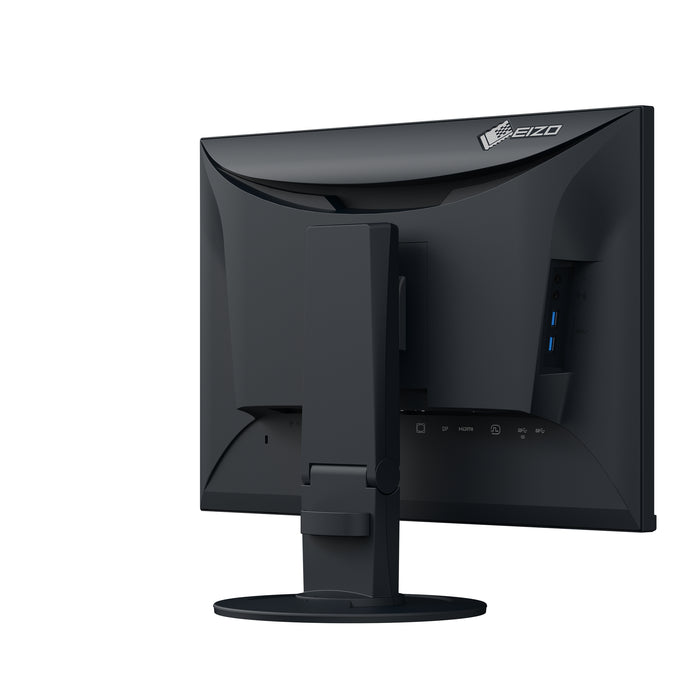

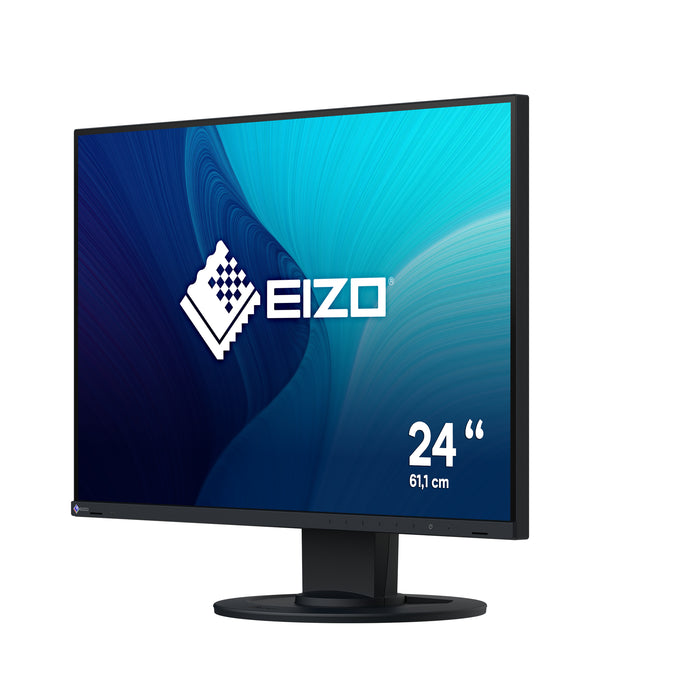

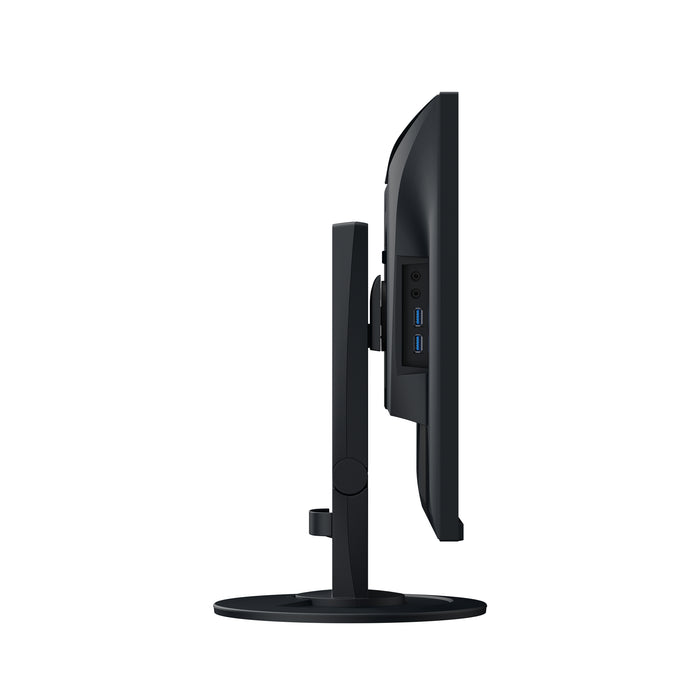

The FlexScan EV2410R impresses as a flexible all-rounder and is ideal for the classic office workstation. Energy-saving, eyefriendly and ergonomic, it is an indispensable helper on any desk and enables efficient working. Equipped with an IPS panel, it has a horizontal and vertical viewing angle of 178° and a resolution of 1920 x 1200 pixels. The low-reflection surface, brightness and contrast ensure a detailed and excellent image reproduction. Auto EcoView automatically adjusts the brightness to the ambient light to avoid glare and protect the eyes. Four inputs for digital and analog signals, a USB hub and headphone and audio connections ensure versatile connectivity. Thanks to the thin housing edge, the monitor has a very compact appearance and is particularly suitable for multi-screen operation. In addition to the on-screen menu, the accompanying Screen InStyle software enables easy operation via computer or network.
Display
Display diagonal: 61.2 cm (24.1")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Display brightness (typical): 350 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1300:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.27 x 0.27 mm
Pixel density: 94 ppi
Horizontal scan range: 31 - 76 kHz
Vertical scan range: 59 - 61 Hz
Viewable size, horizontal: 51.8 cm
Viewable size, vertical: 32.4 cm
Display diagonal (metric): 61.1 cm
Colour gamut standard: sRGB
Performance
Component video sync: Separate sync
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Office
Product colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 1
Feature: HDMI
DisplayPorts quantity: 1
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: HDCP
HDCP version: 1.4
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Feature: Height adjustment
Adjustable height (max): 13 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian
Power
Energy efficiency class (SDR): B
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 8 kWh
Power consumption (typical): 8 W
Power consumption (standby): 0.5 W
Power consumption (max): 54 W
Power consumption (off): 0 W
AC input voltage: 100 - 240 V
AC input frequency: 50 Hz
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 531 mm
Depth (with stand): 233 mm
Height (with stand): 358.4 mm
Weight (with stand): 6 kg
Width (without stand): 531 mm
Depth (without stand): 57 mm
Height (without stand): 345.2 mm
Weight (without stand): 3.9 kg
Packaging content
Cables included: DisplayPort, Power, USB Type-A to USB Type-B
Feature: Quick start guide
Feature: Manual
Sustainability
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Other features
Compliance certificates: CCC, CE, China RoHS, Federal Communications Commission (FCC), PSE, RoHS, TÜV mark, UKCA, VCCI, WEEE
Feature: Power management
EIZO FlexScan EV2410R. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Eizo
MBR CODE - EV2410R-BK
EAN - 4995047069799
