Display
Display diagonal: 57.1 cm (22.5")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Backlight type: LED
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.254 x 0.248 mm
Pixel density: 101 ppi
Horizontal scan range: 31 - 75.5 kHz
Vertical scan range: 59 - 61 Hz
Viewable size, horizontal: 48.8 cm
Viewable size, vertical: 29.7 cm
Viewable size diagonal: 57.2 cm
Colour gamut standard: sRGB
Performance
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Feature: Frameless design
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: HDMI
DisplayPorts quantity: 1
Feature: Audio input
Feature: Headphone out
Headphone connectivity: 3.5 mm
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Height adjustment
Adjustable height (max): 14 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Power
Energy efficiency class (SDR): C
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 10.5 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 346698
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
Width (with stand): 499 mm
Depth (with stand): 233 mm
Height (with stand): 333.9 mm
Weight (with stand): 5.5 kg
Width (without stand): 499 mm
Depth (without stand): 53.6 mm
Height (without stand): 321.3 mm
Weight (without stand): 3.4 kg
Packaging content
Feature: Stand included
Cables included: AC, DisplayPort, USB
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO
Other features
Compliance certificates: BIS, BSMI, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, VCCI, WEEE
Logistics data
Harmonized System (HS) code: 85285210

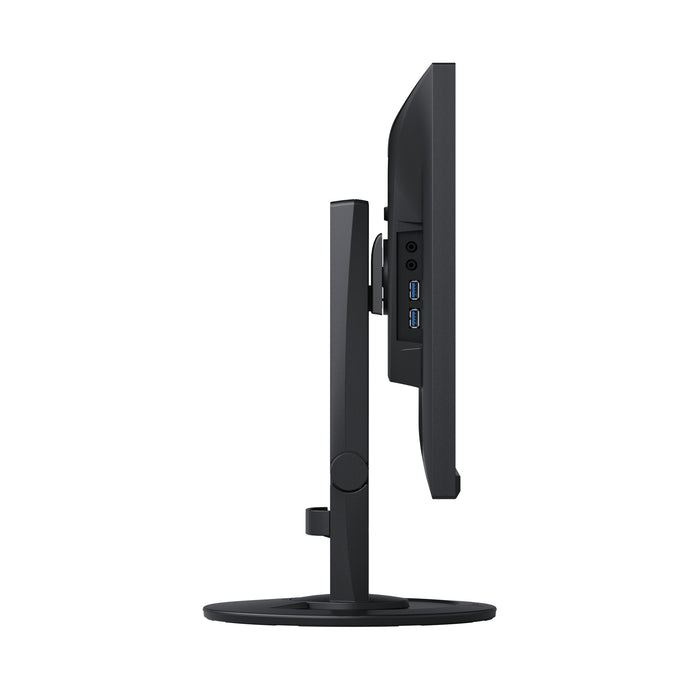

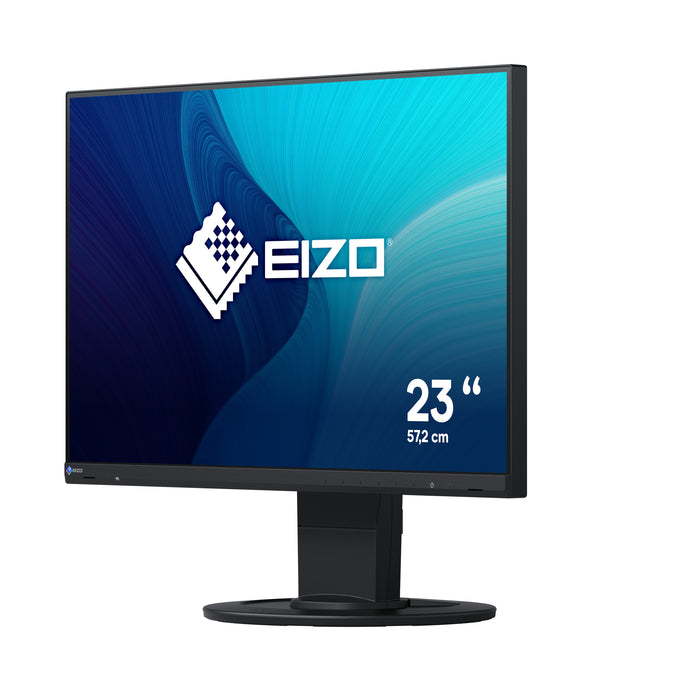

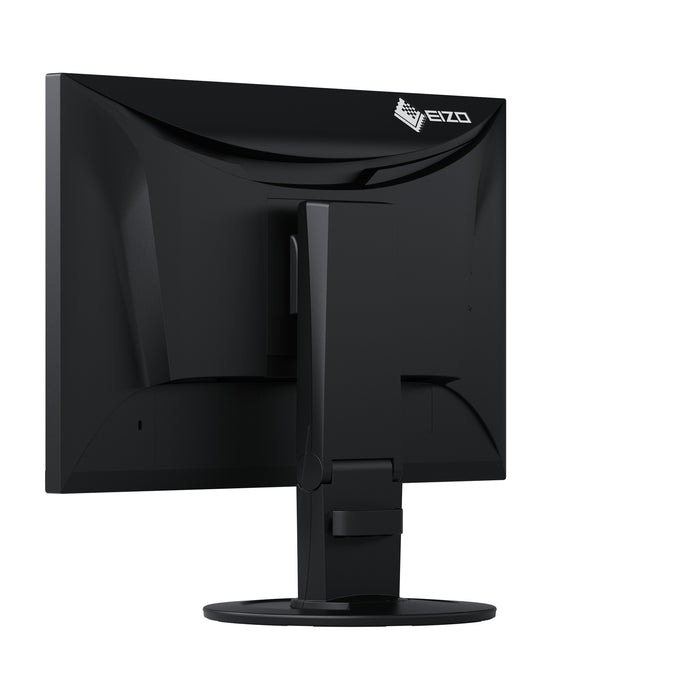

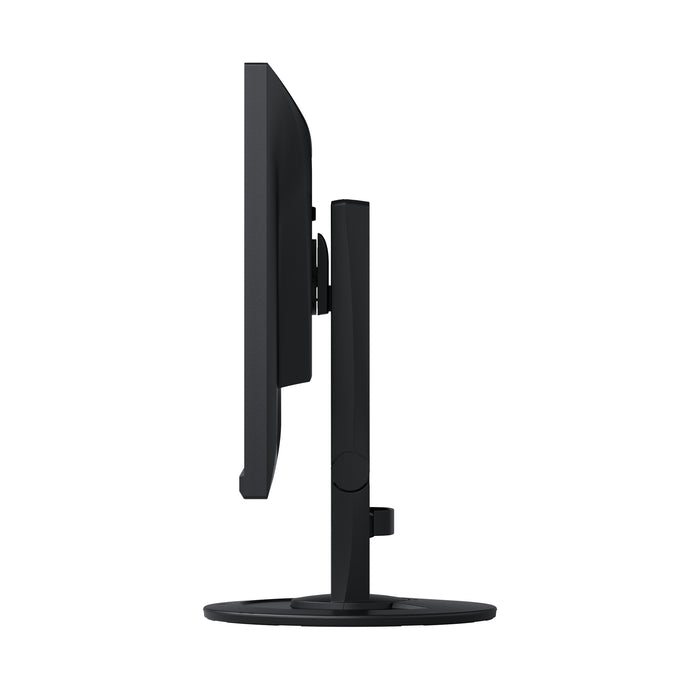

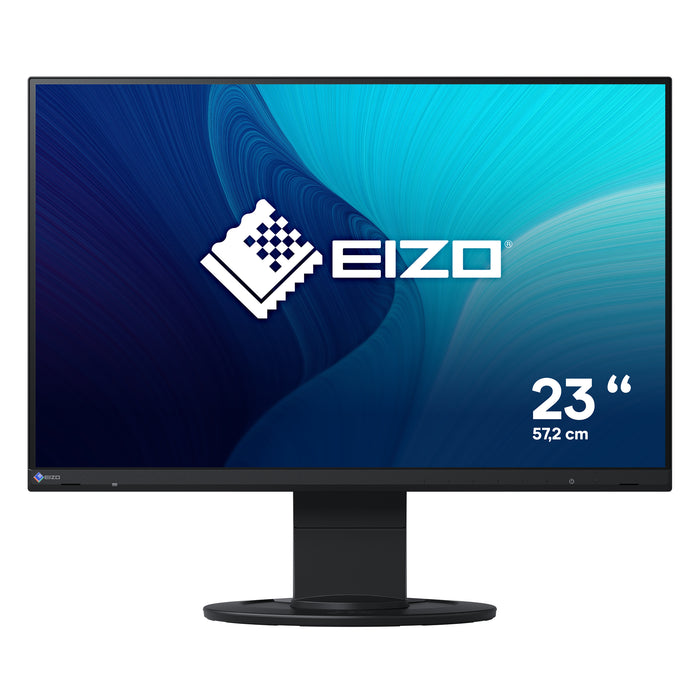

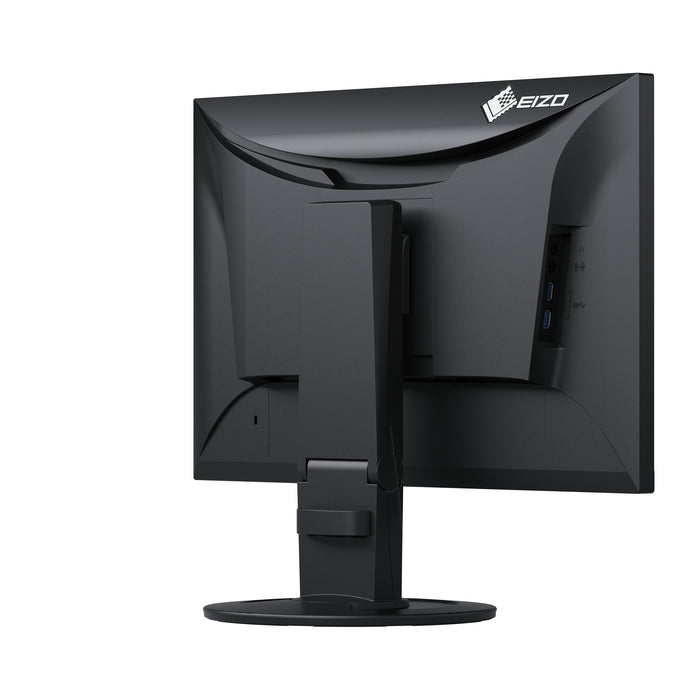

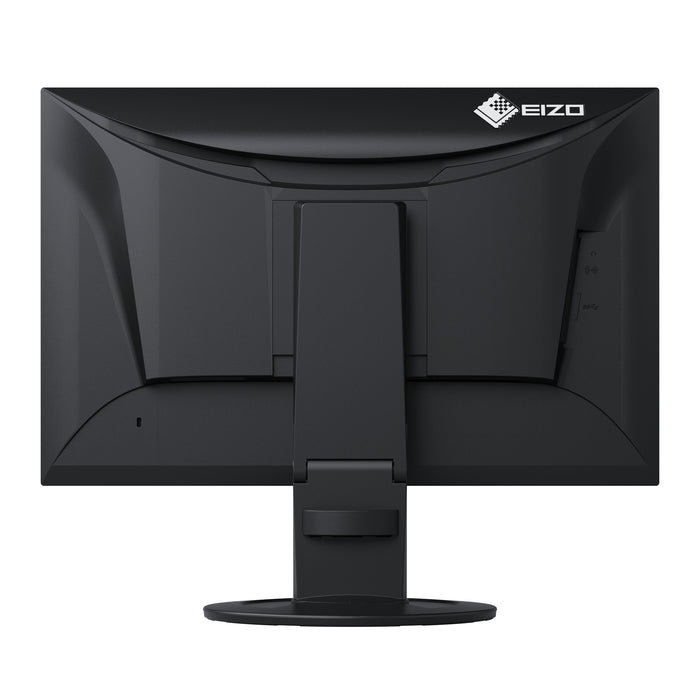

EIZO FlexScan EV2360-BK. Display diagonal: 57.1 cm (22.5"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Eizo
MBR CODE - EV2360-BK
EAN - 4995047055198
Display diagonal | 57.1 cm (22.5") |
Display resolution | 1920 x 1200 pixels |
HD type | WUXGA |
Native aspect ratio | 16:10 |
Display technology | LED |
Panel type | IPS |
Backlight type | LED |
Touchscreen | No |
Display brightness (typical) | 250 cd/m² |
Response time | 5 ms |
Screen shape | Flat |
Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Contrast ratio (typical) | 1000:1 |
Maximum refresh rate | 60 Hz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.78 million colours |
Pixel pitch | 0.254 x 0.248 mm |
Pixel density | 101 ppi |
Horizontal scan range | 31 - 75.5 kHz |
Vertical scan range | 59 - 61 Hz |
Viewable size, horizontal | 48.8 cm |
Viewable size, vertical | 29.7 cm |
Viewable size diagonal | 57.2 cm |
Colour gamut standard | sRGB |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Flicker-free technology | Yes |
Number of speakers | 2 |
RMS rated power | 2 W |
Built-in speaker(s) | Yes |
Market positioning | Business |
Product colour | Black |
Frameless design | Yes |
Built-in USB hub | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
USB upstream port type | USB Type-B |
Number of upstream ports | 1 |
USB Type-A downstream ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
DVI port | No |
HDMI | Yes |
DisplayPorts quantity | 1 |
Audio input | Yes |
Headphone out | Yes |
Headphone connectivity | 3.5 mm |
HDCP | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Height adjustment | Yes |
Adjustable height (max) | 14 cm |
Pivot | Yes |
Pivot angle | -90 - 90° |
Swivelling | Yes |
Swivel angle range | 0 - 344° |
Tilt adjustment | Yes |
Tilt angle range | -5 - 35° |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
Energy efficiency class (SDR) | C |
Energy consumption (SDR) per 1000 hours | 11 kWh |
Power consumption (typical) | 10.5 W |
Power consumption (standby) | 0.5 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Energy efficiency scale | A to G |
European Product Registry for Energy Labelling (EPREL) code | 346698 |
Operating temperature (T-T) | 5 - 35 °C |
Operating relative humidity (H-H) | 20 - 80% |
Width (with stand) | 499 mm |
Depth (with stand) | 233 mm |
Height (with stand) | 333.9 mm |
Weight (with stand) | 5.5 kg |
Width (without stand) | 499 mm |
Depth (without stand) | 53.6 mm |
Height (without stand) | 321.3 mm |
Weight (without stand) | 3.4 kg |
Stand included | Yes |
Cables included | AC, DisplayPort, USB |
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO |
Compliance certificates | BIS, BSMI, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, VCCI, WEEE |
Certification | CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, BIS, BSMI, EAC |
Harmonized System (HS) code | 85285210 |
