The CS2731 unites precision, colour fidelity and cutting-edge connectivity thanks to its USB-C port. This makes the monitor the central interface for the graphic workflow of sophisticated creatives with high standards. The wide gamut, 16-bit look-up-table and precise factory calibration of the CS2731 allows you to enjoy an unadulterated look at your image files in creative workflows requiring high colour accuracy. Convenient functionalities such as monitor signal transmission, rapid data transfer and the power supply feature for connected devices are enabled with just one USB-C port.
Display
Display diagonal: 68.6 cm (27")
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Display brightness (typical): 350 cd/m²
Response time: 16 ms
Screen shape: Flat
Supported graphics resolutions: 2560 x 1440
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.233 x 0.233 mm
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital horizontal frequency: 15 - 89 kHz
Digital vertical frequency: 23 - 61 Hz
Feature: DDC/CI
Colour gamut standard: Adobe RGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 99%
Feature: Separate H/V sync
DCI-P3 coverage: 95%
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Design
Market positioning: Graphics design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports: 2
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
Power
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 36 kWh
Power consumption (typical): 35.7 W
Power consumption (standby): 0.5 W
Power consumption (max): 159 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 356550
Weight & dimensions
Width (with stand): 638 mm
Depth (with stand): 265 mm
Height (with stand): 404.1 mm
Weight (with stand): 10.1 kg
Weight (without stand): 6.5 kg
Packaging content
Cables included: AC, HDMI, USB Type-C
Feature: Quick start guide
Sustainability
Sustainability certificates: ENERGY STAR
Other features
Feature: Hardware calibration
Feature: On/off switch
Compliance certificates: RoHS
Certification: CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3(B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE
Logistics data
Harmonized System (HS) code: 85285210

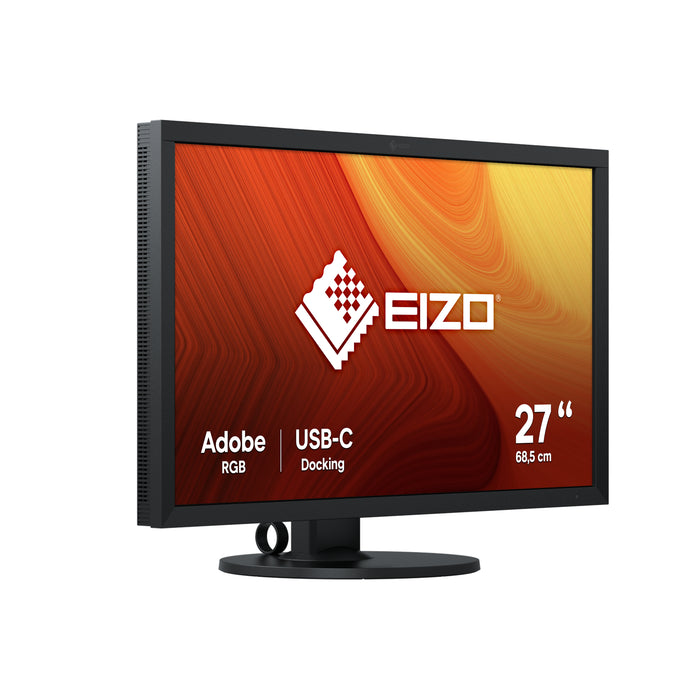

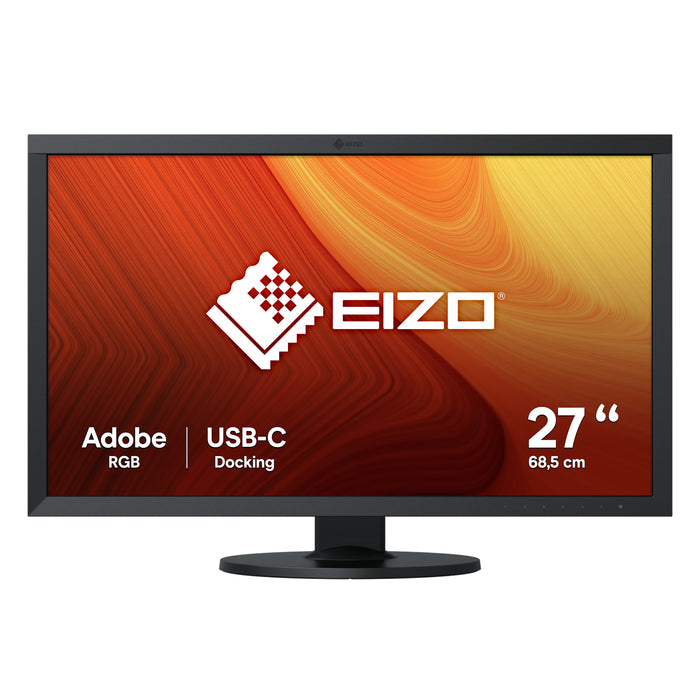

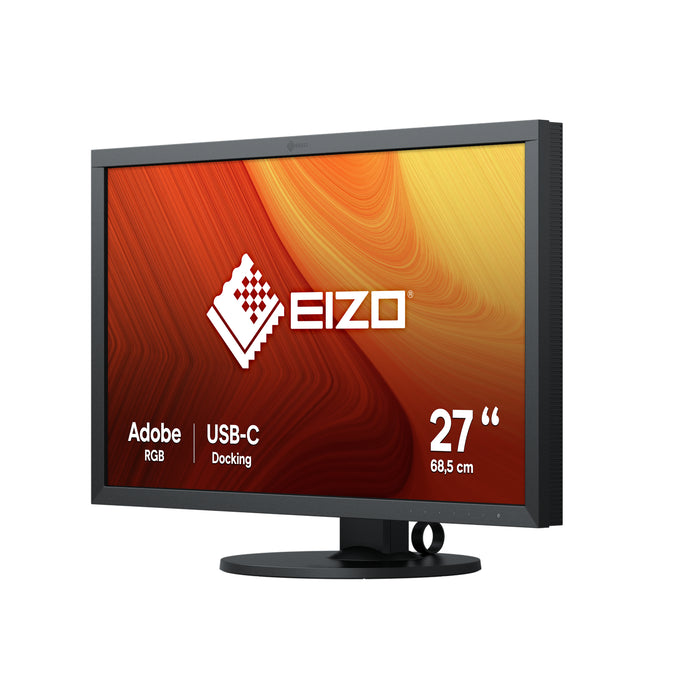

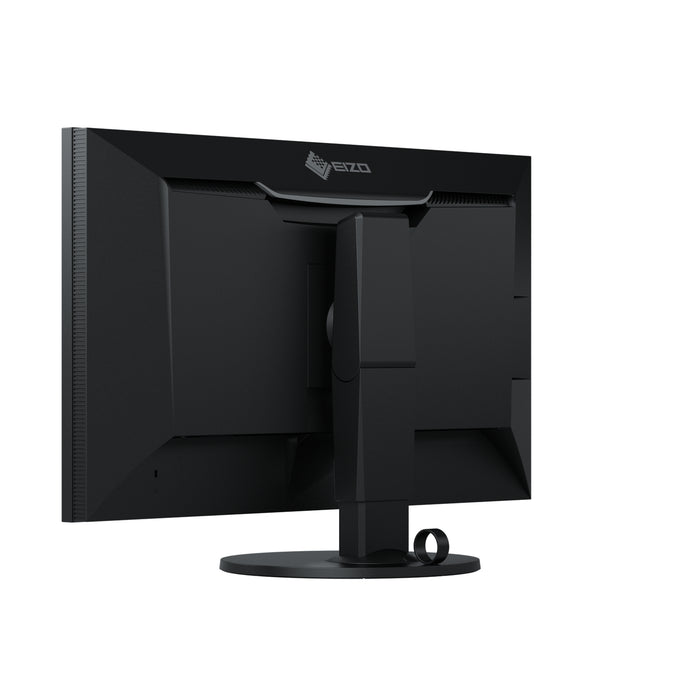

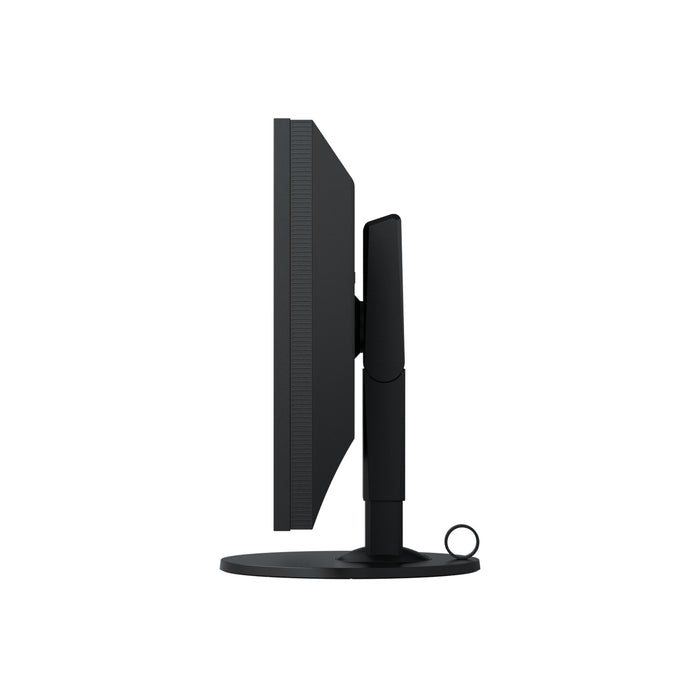

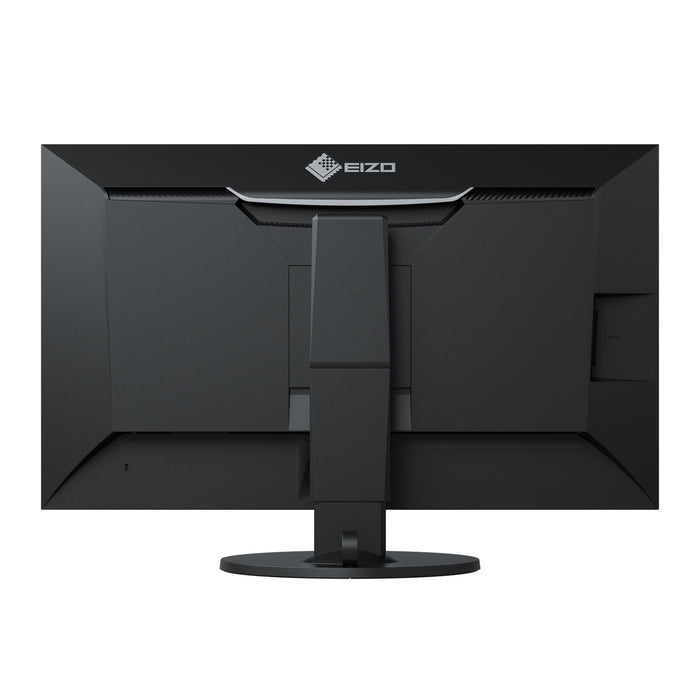

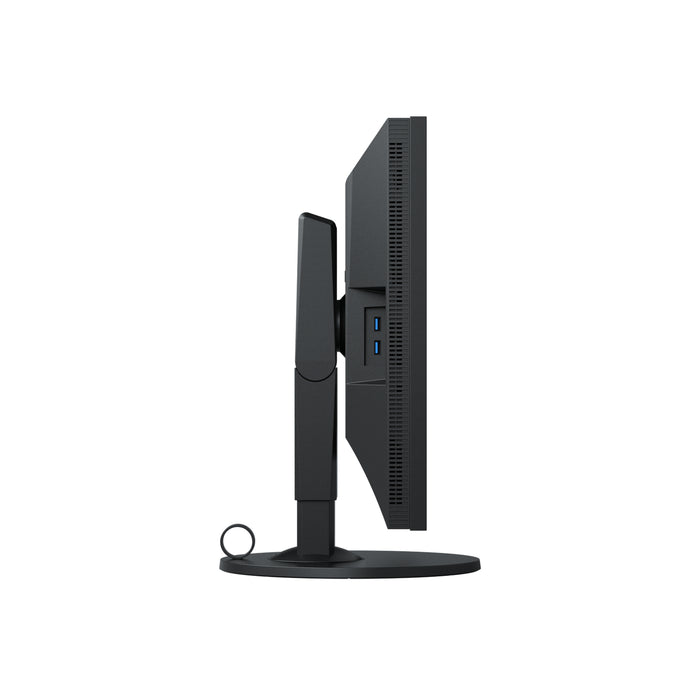

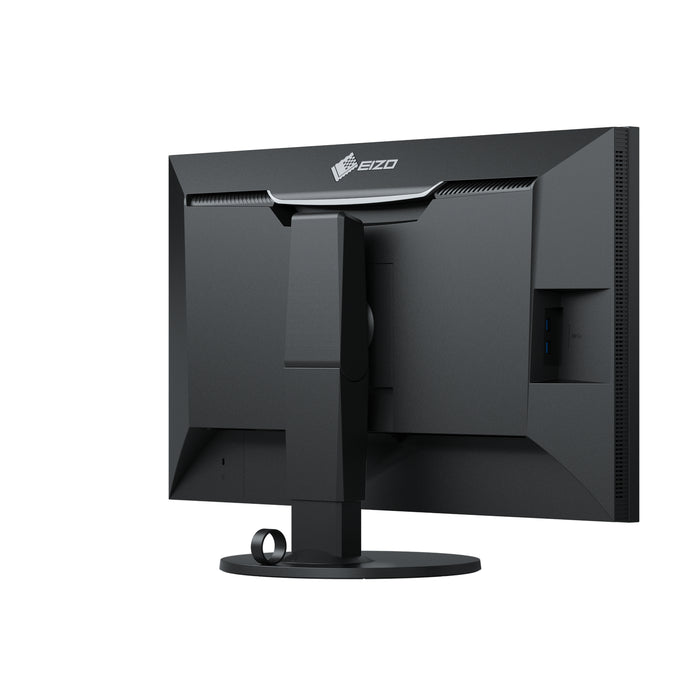

EIZO ColorEdge CS2731. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Eizo
MBR CODE - CS2731
EAN - 4995047054580
