Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 750 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W

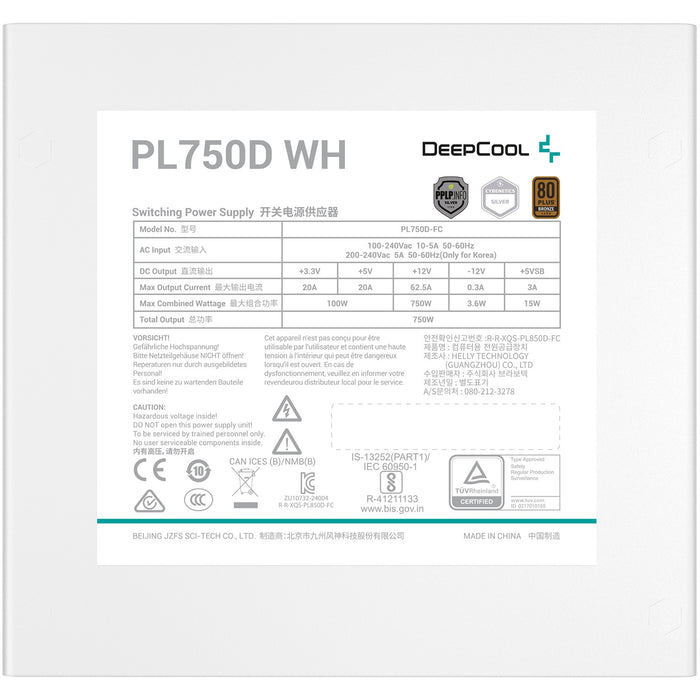

Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 85%
Power Good signal delay range: 100 - 150 ms
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 7
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)

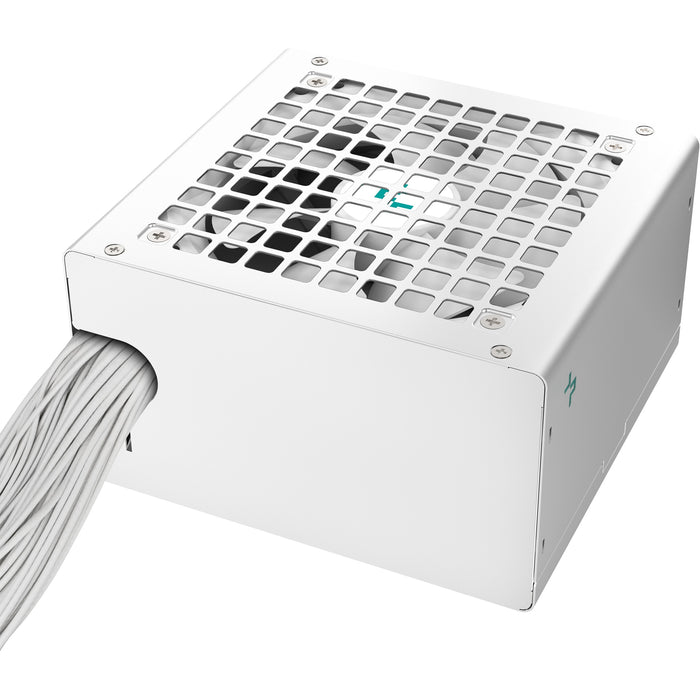

Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HYB
Mean time between failures (MTBF): 100000 h
Design
Product colour: White
Cooling type: Active

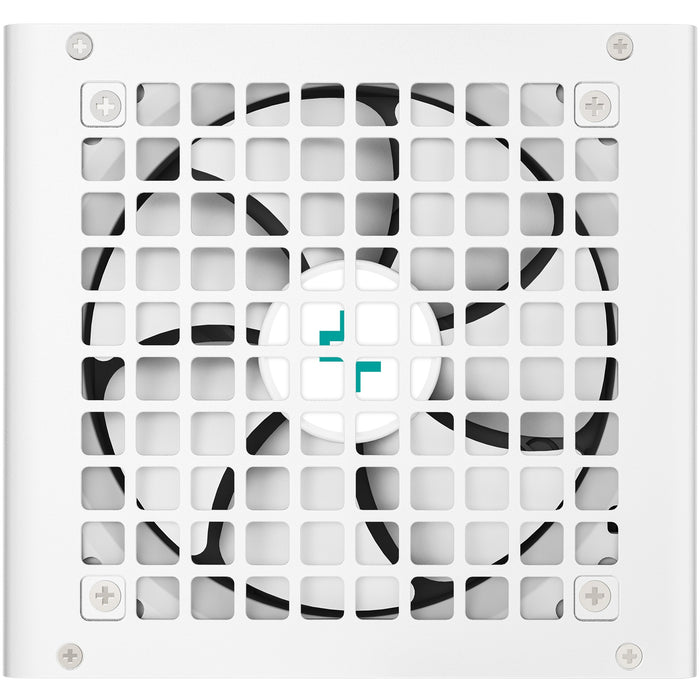

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

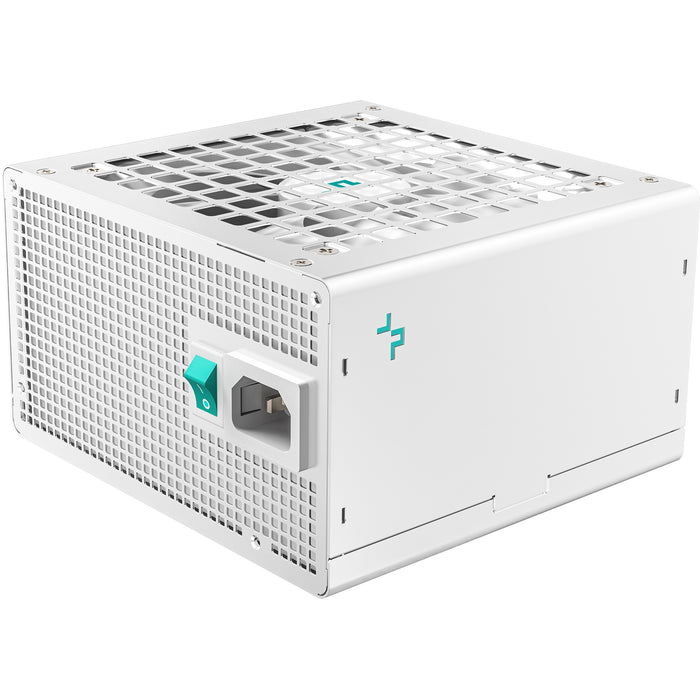

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: RoHS, WEEE
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP, Triman
Logistics data
Country of origin: China

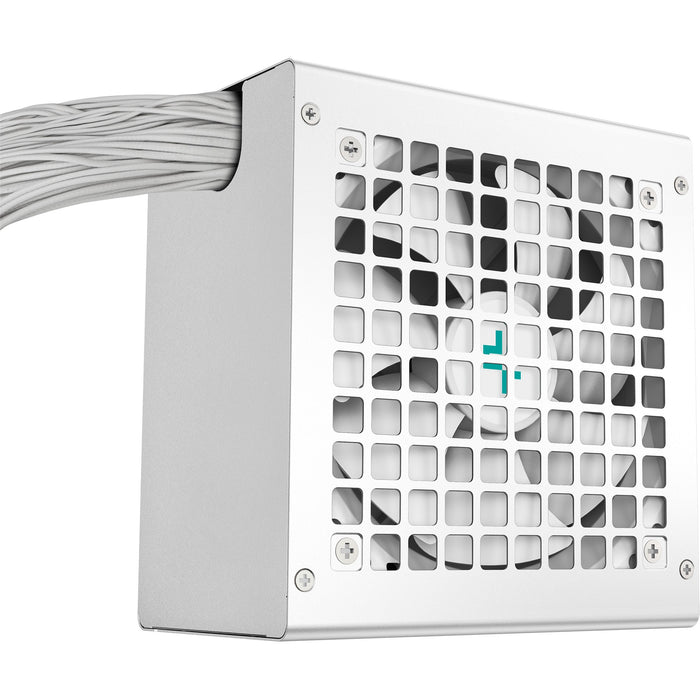

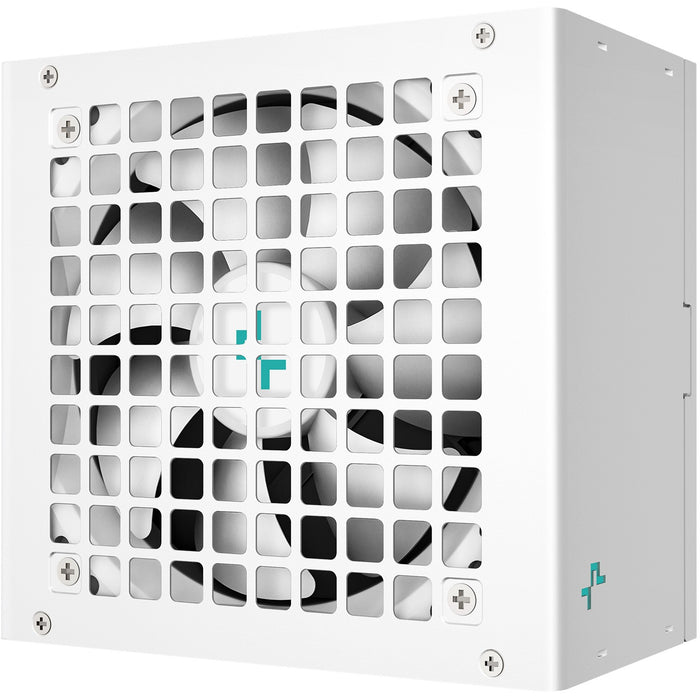

DeepCool PL750D WH. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE, Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Deepcool
MBR CODE - R-PL750D-FC0W-EU-V2
EAN - 6933412721437
