Chieftec
MBR CODE - CSN-550C
EAN - 4710713235762
Total power | 550 W |
AC input voltage | 100 - 240 V |
AC input frequency | 47 - 63 Hz |
Input current | 6 A |
Power factor | 0.9 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 90 W |
Combined power (+5V) | 90 W |
Max output current (+3.3V) | 18 A |
Max output current (+12V1) | 45.8 A |
Max output current (+5V) | 15 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Efficiency | 90% |
Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 3 |
PCI Express power connectors (6+2 pin) | 2 |
CPU power connector (4+4 pin) | Yes |
ATX power connector (20+4 pin) | Yes |
Floppy drive power connector | 1 |

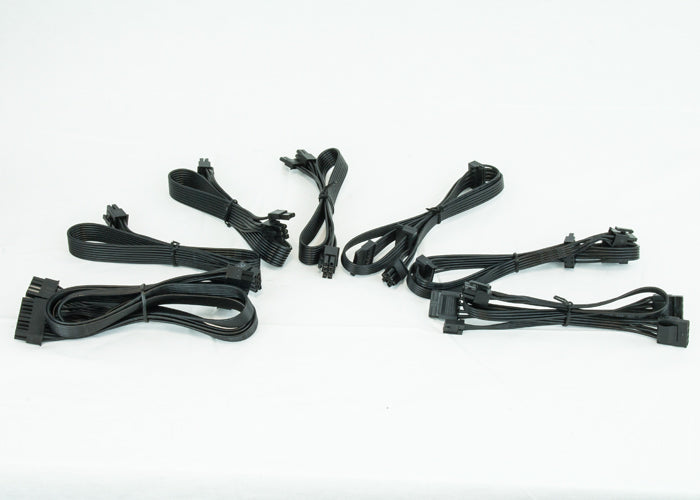

Cabling type | Fully-Modular |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Power supply unit (PSU) form factor | PS/2 |
ATX version | 2.3 |
Product colour | Black |
Fan diameter | 8 cm |
Number of fans | 1 fan(s) |
Width | 125 mm |
Depth | 100 mm |
Height | 64 mm |
Harmonized System (HS) code | 84733020 |
