Performance
Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, Intel® Core™ i9
Noise level (low speed): 15.4 dB
Noise level (high speed): 35.2 dB
Maximum airflow: 59.6 cfm
Airflow: 101.2 m³/h
Maximum air pressure: 2.41 mmH2O
Feature: Pulse-width modulation (PWM) support
Pump connector: 4-pin
Quantity per pack: 1 pc(s)
Pump motor speed: 5500 RPM
Pump motor speed (min): 3000 RPM
Pump motor speed (max): 5500 RPM
Fan speed (max): 2100 RPM
Fan's mean time to failure (MTTF): 80000 h
Design
Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 2 fan(s)
Number of fan blades: 9
Feature: Daisy chain
Power
Fan power consumption: 5.4 W
Fan voltage: 12 V
Fan current: 0.13 A
Weight & dimensions
Radiator width: 12 cm
Radiator depth: 27.7 cm
Radiator height: 2.7 cm
Tube length: 40 cm
Waterblock width: 9.34 cm
Waterblock depth: 6.85 cm
Waterblock height: 4.49 cm
Height: 52 mm
Weight: 1.02 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 240 mm
Package depth: 321 mm
Package height: 140 mm
Package weight: 1.75 kg
Technical details
Sustainability certificates: Triman
Doesn't contain: Cadmium, Lead, Mercury
Warranty period: 3 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance

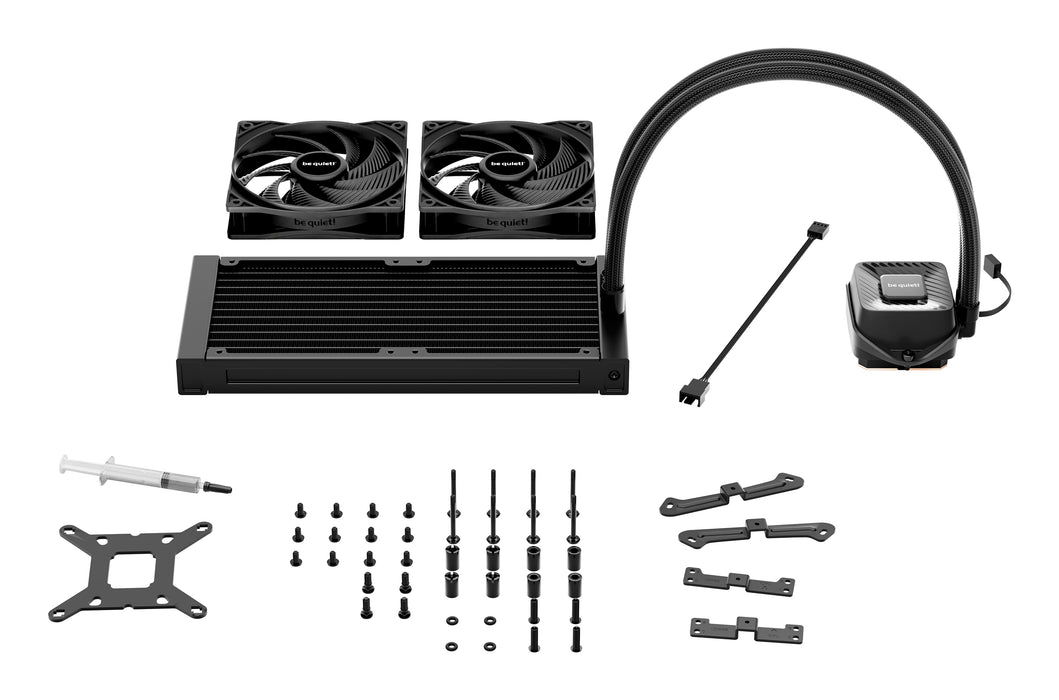

Packaging content
Package type: Box
Cables included: 4-pin
Feature: Mounting kit
Feature: Manual
Other features
Feature: Thermal grease

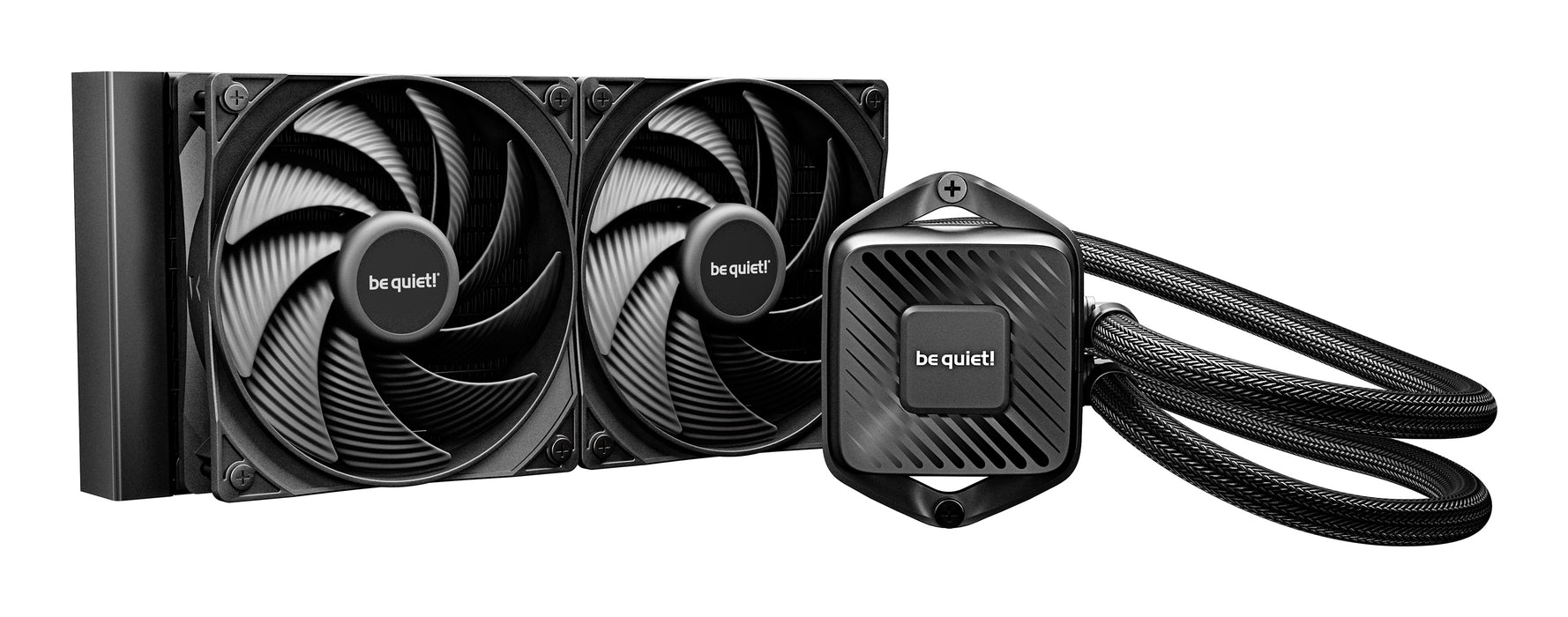

be quiet! PURE LOOP 3. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 101.2 m³/h, Maximum air pressure: 2.41 mmH2O. Height: 52 mm. Product colour: Black
Be Quiet!
MBR CODE - BW027EU
EAN - 4260052193167
Suitable location | Processor |
Type | All-in-one liquid cooler |
Fan diameter | 12 cm |
Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Compatible processor series | AMD Ryzen 9000 Series, Intel® Core™ i9 |
Noise level (low speed) | 15.4 dB |
Noise level (high speed) | 35.2 dB |
Maximum airflow | 59.6 cfm |
Airflow | 101.2 m³/h |
Maximum air pressure | 2.41 mmH2O |
Pulse-width modulation (PWM) support | Yes |
Pump connector | 4-pin |
Quantity per pack | 1 pc(s) |
Pump motor speed | 5500 RPM |
Pump motor speed (min) | 3000 RPM |
Pump motor speed (max) | 5500 RPM |
Fan speed (max) | 2100 RPM |
Fan's mean time to failure (MTTF) | 80000 h |
Product colour | Black |
Radiator material | Aluminum |
Base plate material | Copper |
Number of fans | 2 fan(s) |
Number of fan blades | 9 |
Illumination LED | No |
Daisy chain | Yes |
Fan power consumption | 5.4 W |
Fan voltage | 12 V |
Fan current | 0.13 A |
Radiator width | 12 cm |
Radiator depth | 27.7 cm |
Radiator height | 2.7 cm |
Tube length | 40 cm |
Waterblock width | 9.34 cm |
Waterblock depth | 6.85 cm |
Waterblock height | 4.49 cm |
Height | 52 mm |
Weight | 1.02 kg |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package width | 240 mm |
Package depth | 321 mm |
Package height | 140 mm |
Package weight | 1.75 kg |
Sustainability certificates | Triman |
Doesn't contain | Cadmium, Lead, Mercury |
Warranty period | 3 year(s) |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Package type | Box |
Cables included | 4-pin |
Mounting kit | Yes |
Manual | Yes |
Thermal grease | Yes |
