Power
Total power: 1000 W
Peak power: 1100 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Number of +12V rail(s): 4
Combined power (+3.3V): 120 W
Combined power (+12V): 996 W
Combined power (+5V): 120 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 33 A
Max output current (+12V2): 33 A
Max output current (+12V3): 40 A
Max output current (+12V4): 40 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 20.1 ms
Efficiency: 93.8%
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces

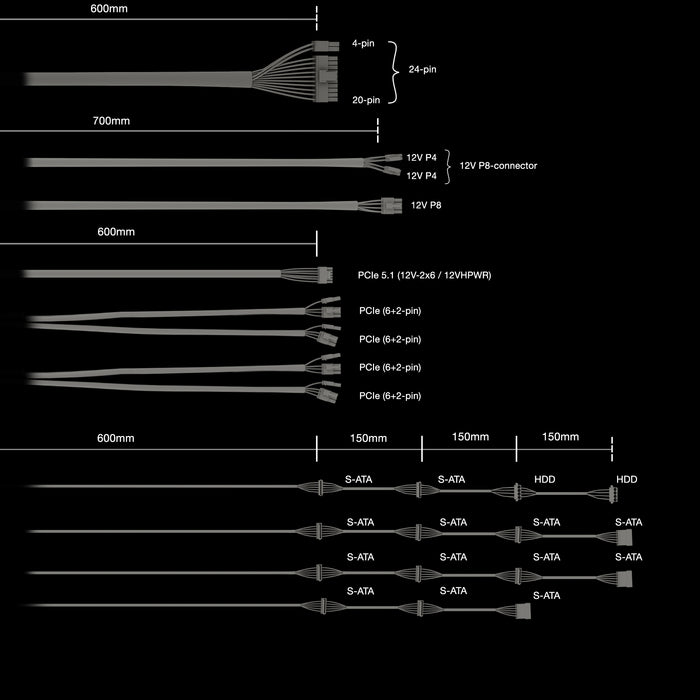

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
SATA power cable length: 600,750,900,1050 mm
Number of SATA power cables: 13
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 900,1050 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector

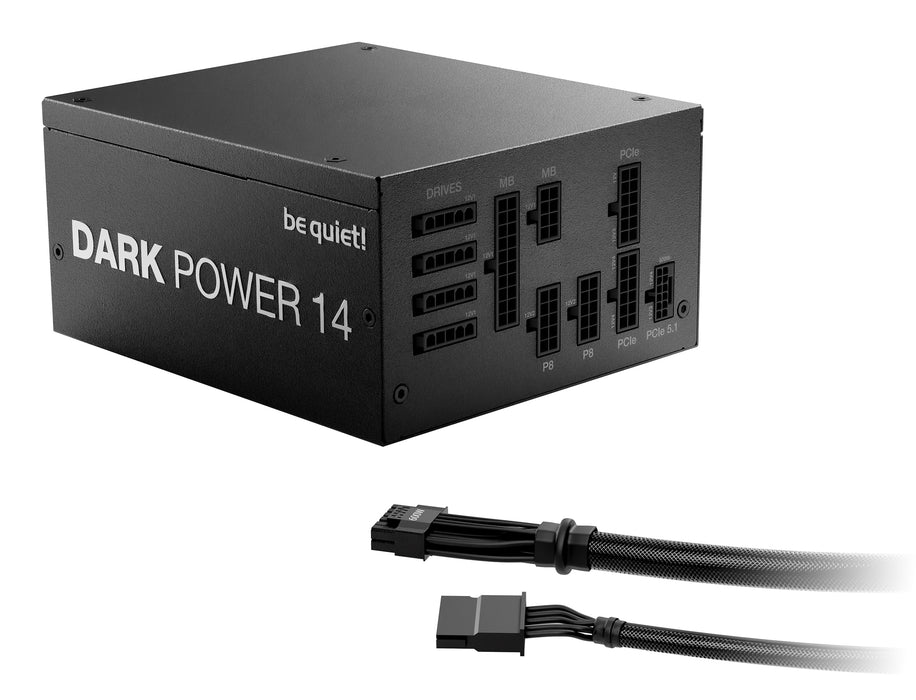

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

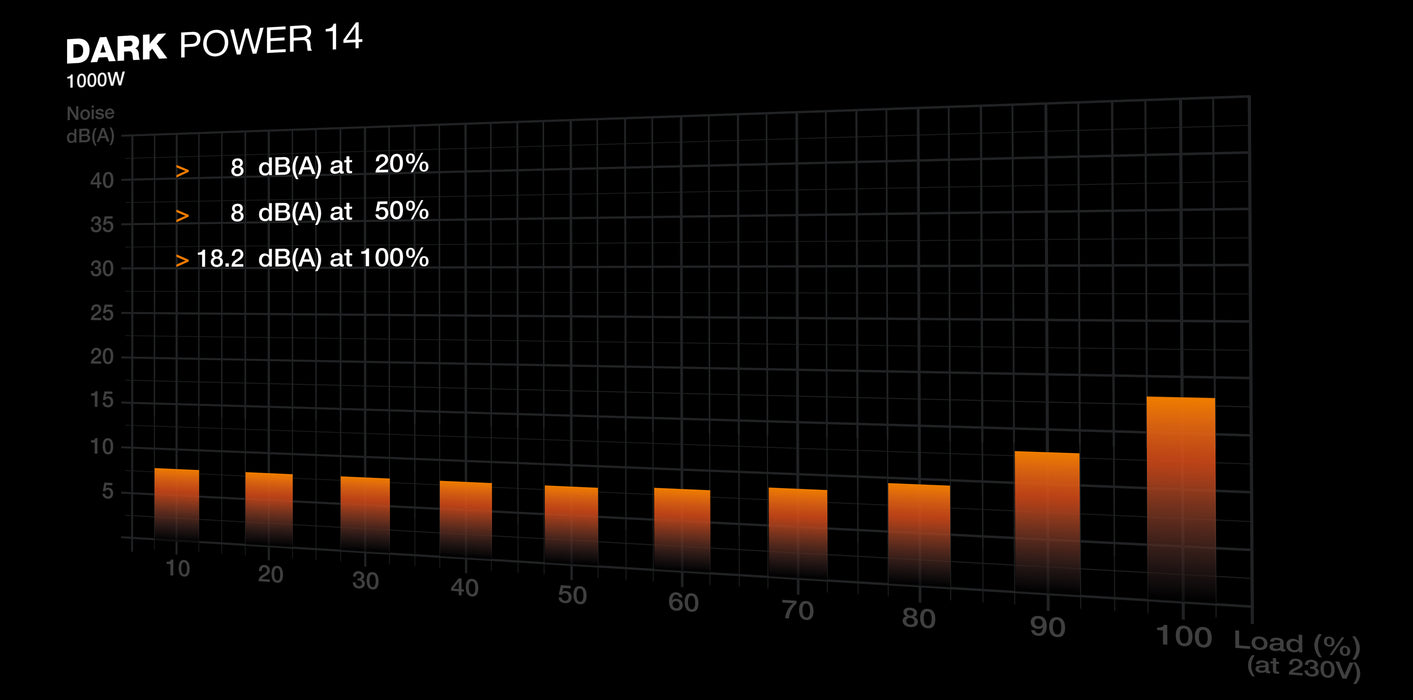

Noise level: 18.2 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Feature: On/off switch
Feature: On/off fan switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Weight & dimensions
Width: 150 mm
Depth: 175 mm
Height: 86 mm
Weight: 2.2 kg
Packaging data
Feature: Manual
Manual languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package width: 230 mm
Package depth: 126 mm
Package height: 355 mm
Package weight: 3.5 kg
Technical details
Sustainability certificates: ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length: 52.8 cm
Shipping (inner) case width: 36.8 cm
Shipping (inner) case height: 26 cm
Shipping (inner) case net weight: 19.3 kg
Products per shipping (inner) case: 4 pc(s)
Other features

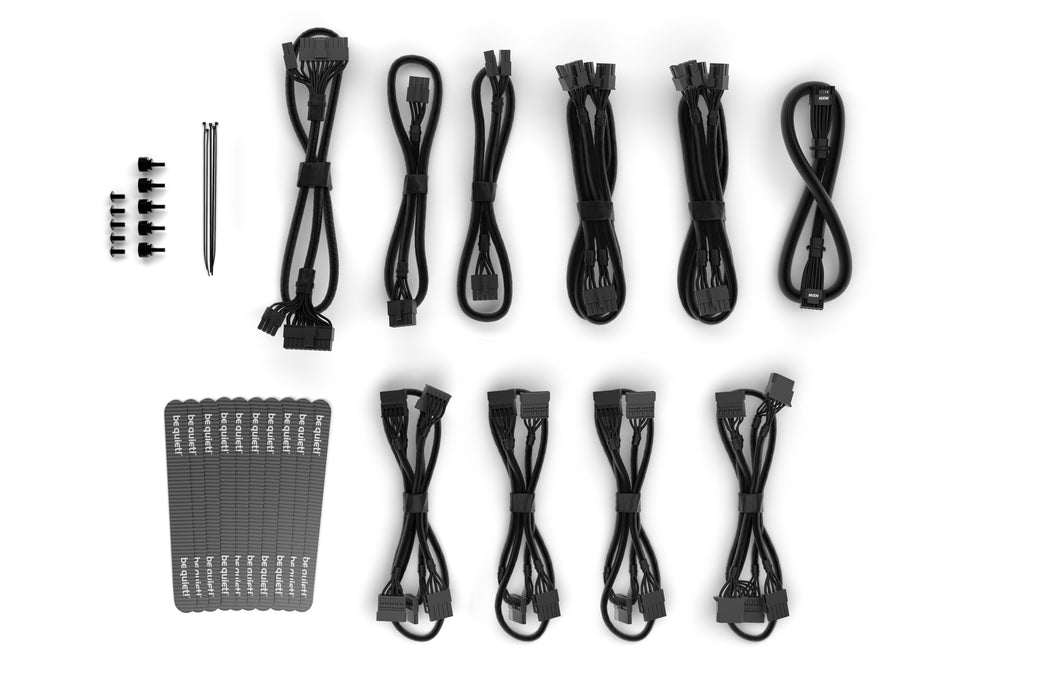

Feature: Screws included
Feature: Cable ties included

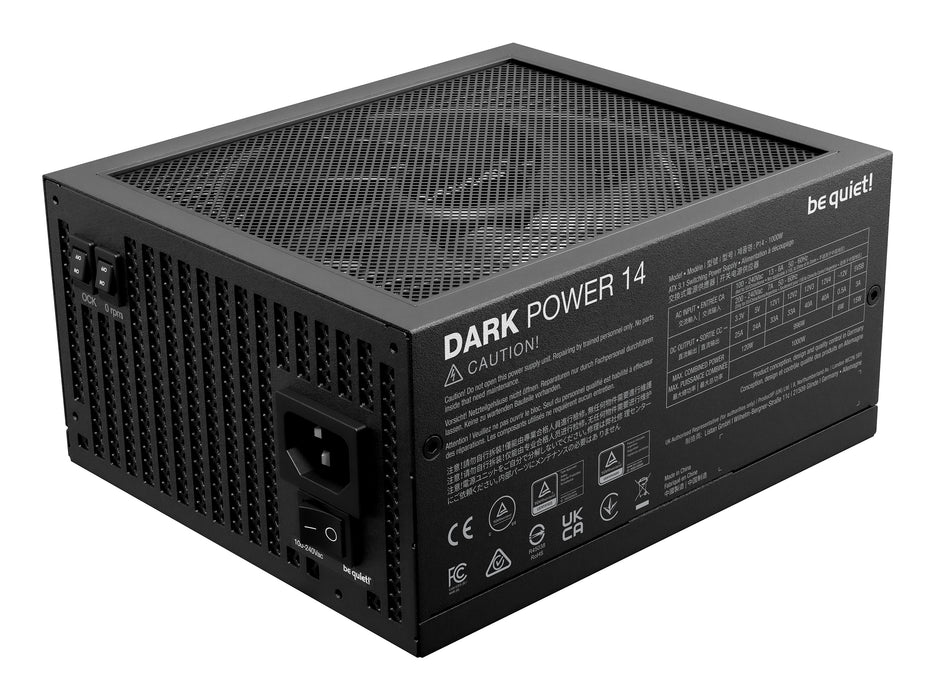

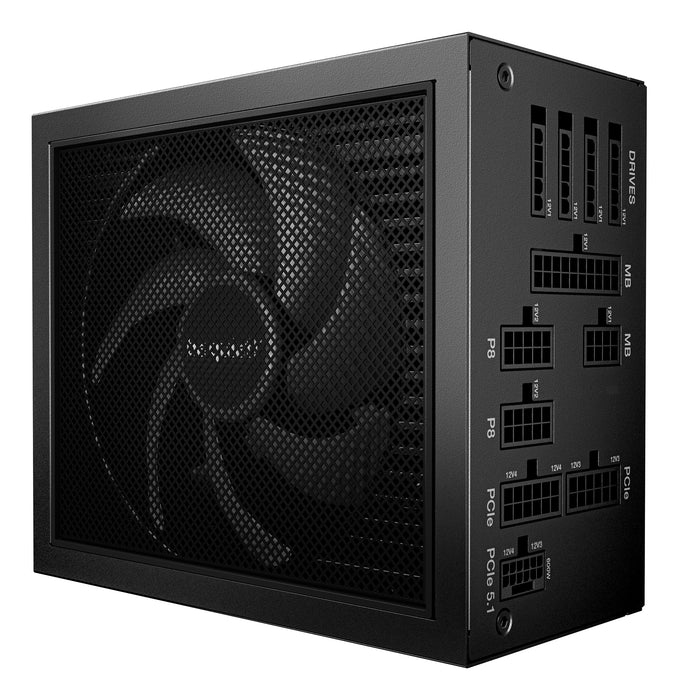

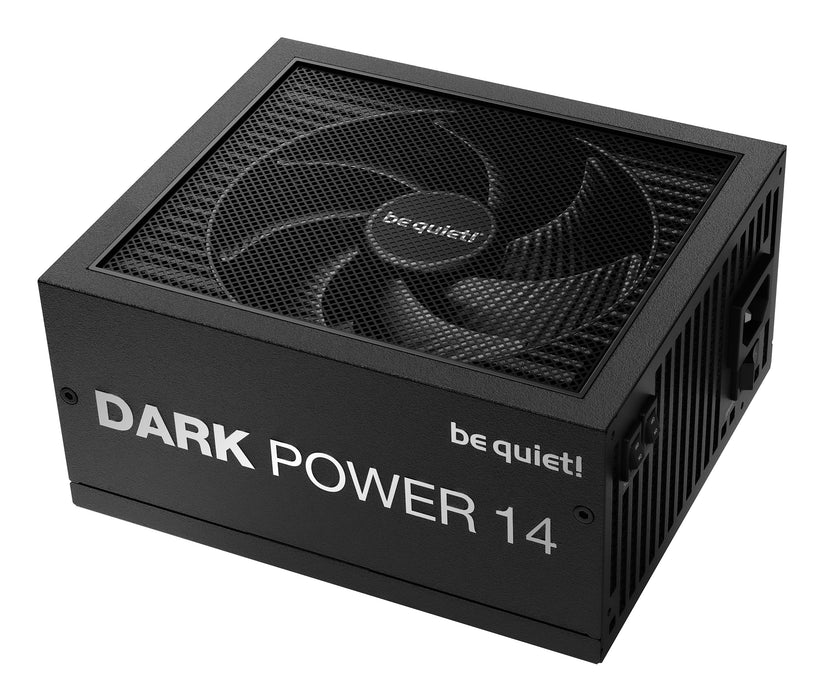

be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Be Quiet!
MBR CODE - BP020EU
EAN - 4260052192023
